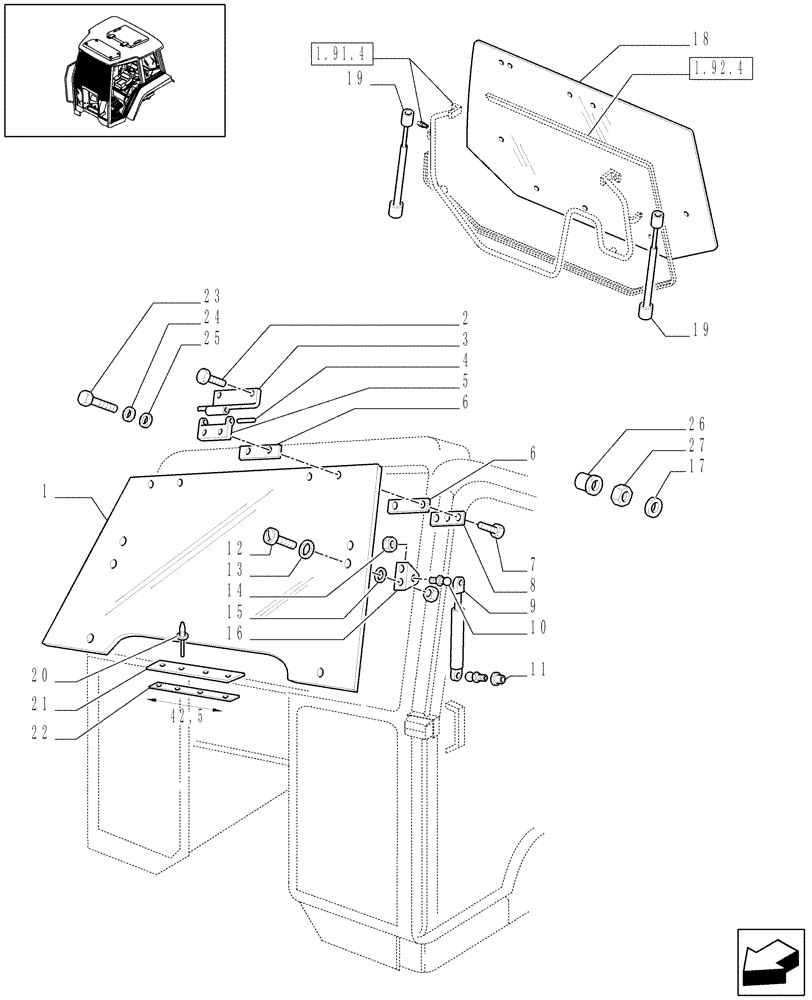

Запчасти Case IH JX1100U (1.92.3/01[01]) - (VAR.640) HINGED WINDSHIELD - FASTENERS (10) - OPERATORS PLATFORM/CAB

1

82003391

WINDSHIELD

1шт.

2

16200624

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

3

82001003

BRACKET

2шт.

4

81865245

PIN,8mm OD x 80mm L

2шт.

5

82000317

HINGE

2шт.

6

81865253

SEAL

4шт.

7

82007919

SCREW,Phillips Drive, Pan HD, M6 x 20mm

M6 x 20

4шт.

8

81873554

SPACER

2шт.

9

82001505

GAS STRUT

FRONT

2шт.

10

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

11

15629111

RIVET,Flat, M8 OD x 17.5mm L

M8X17.5

2шт.

12

5177632

BOLT,M8 x 1.25 x 30mm

4шт.

13

81865261

WASHER,6.8mm ID x 12mm OD x 3mm Thk

4шт.

14

14047317

NUT,M8 x 1.25

6шт.

15

81872309

SPACER,8.2mm ID x 36mm OD x 10.2mm L

4шт.

16

82001004

BRACKET

2шт.

17

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

4шт.

18

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

4шт.

19

47123877

GAS STRUT

REAR

2шт.

20

14642093

RIVET,Tr Hd, M3.9 x 12, Aluminum

4шт.

21

82007858

SEAL,55mm W x 425mm L

1шт.

22

82008145

PLATE

1шт.

23

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

24

5178211

WASHER,8.5mm ID x 30mm OD x 2.5mm Thk

1шт.

25

5178210

SEALING WASHER,M7 x 27 x 3 Thk

1шт.

26

15629111

RIVET,Flat, M8 OD x 17.5mm L

8X17.5

1шт.

27

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.
