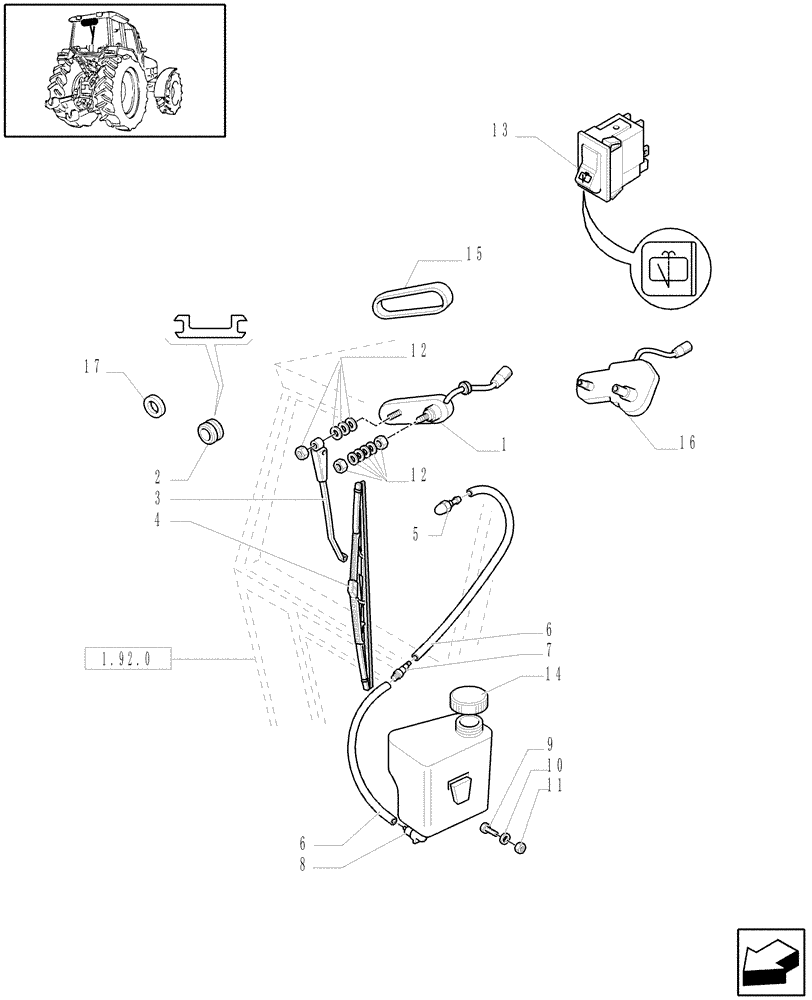

Запчасти Case IH JX1100U (1.91.5/01) - (VAR.642) REAR WINDSHIELD WIPER - TANK (10) - OPERATORS PLATFORM/CAB

1

82009353

WIPER MOTOR,12V

Incl. 12, 15, Serial Range: -C4968

1шт.

1

87311817

WIPER MOTOR

Incl. 12, 15, Serial Range: D4968-C5418

1шт.

2

82001910

PLUG,23.5mm ID x 27.5mm OD x 11mm L

12.5 ID

1шт.

2

82001909

PLUG,33mm OD

24.5 ID

1шт.

3

82001912

WIPER ARM,Single, 385mm L

1шт.

4

82003345

WIPER BLADE,500mm L

1шт.

5

82006204

NOZZLE

1шт.

6

5179378

TUBE

1шт.

7

5136113

VALVE

1шт.

8

5183084

RESERVOIR, WINDSHIEL

2 Motors

1шт.

9

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

2шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

12

9967810

KIT

1шт.

13

5165828

REAR WIPER SWITCH

1шт.

14

9970187

PLUG

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, Incl. in 16

1шт.

16

87398324

WIPER MOTOR

OSLU, Assy, Incl. 15, Start Serial: D5418

1шт.

17

4998870

SEAL,7mm ID x 15.5mm OD x 1mm Thk

1шт.
