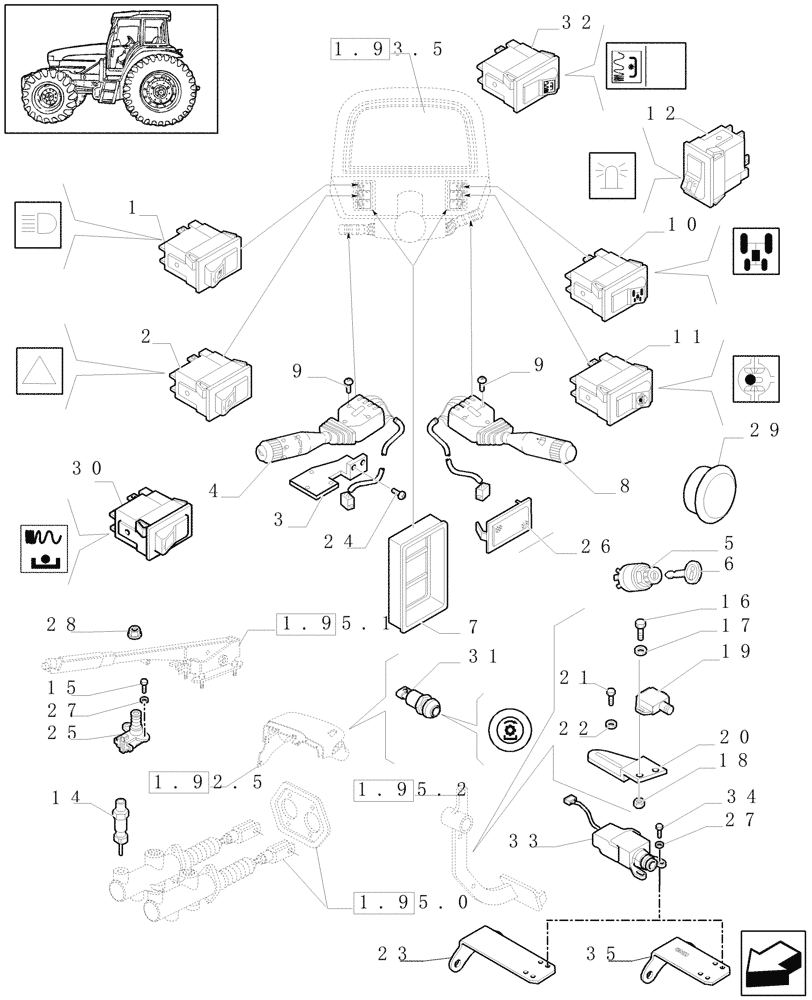

Запчасти Case IH JX1100U (1.91.0) - ELECTRIC SYSTEM - SWITCHES & CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5199229

LIGHT SWITCH

Corner Light W/Cab

1шт.

2

5145664

FLASHER SWITCH

Hazard L/Cab

1шт.

2

5197918

FLASHER SWITCH

W/Cab

1шт.

3

82012889

BRACKET

1шт.

4

5198383

LIGHT SWITCH

, Serial Range: -C5616

1шт.

4

87648946

LIGHT SWITCH

Lights Control, Start Serial: D5616

1шт.

5

47124203

IGNITION SWITCH

, Serial Range: -C7078

1шт.

5

87523122

IGNITION SWITCH

, Start Serial: D7078

1шт.

6

47126500

IGNITION KEY

Red

2шт.

7

47126167

HOUSING

2шт.

7

5171860

CAPPING

, Start Serial: HJT090304

1шт.

8

47123349

WINDSHIELD WIPER SWI

W/Cab

1шт.

9

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

6шт.

10

5179105

TOGGLE SWITCH

4WD, L/Cab

1шт.

10

47128548

TOGGLE SWITCH

4WD, W/Cab

1шт.

11

5186355

DIFF LOCK SWITCH

Diff. Lock, L/Cab

1шт.

11

5184399

DIFF LOCK SWITCH

Diff. Lock, W/Cab

1шт.

12

5165813

BEACON SWITCH

Rotary Beacon

1шт.

13

5199230

LIGHT SWITCH

Rear Works Lamps W/Cab

1шт.

14

5190018

PRESSURE SWITCH

Brake Light

2шт.

15

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

16

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

17

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

18

10794014

NUT,M4, Cl 8

2шт.

19

47137022

SWITCH

Snap Action

1шт.

Q/TY 2 FOR 4WD

1шт.

19

47132449

SWITCH

4 WD, L/Cab, JX1100U

1шт.

19

87302930

SWITCH

Includes Wire

1шт.

20

47124373

BRACKET

1шт.

21

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

22

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

23

5182316

BRACKET

4WD

1шт.

W/Hydraulic Differential

1шт.

24

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

2шт.

25

87735366

SWITCH

Hand Brake

1шт.

26

5166218

PLUG,Switch

M6 x 16

1шт.

27

10571374

LOCK WASHER

M5

2шт.

28

5198051

NUT

1шт.

29

5155568

PLUG,Cap locking hole

D=30, W/Cab

2шт.

30

5181801

TOGGLE SWITCH

W/Cab, VAR.094-838, Serial Range: -C5362

1шт.

Modulated PTO Switch

1шт.

31

82025543

PTO SWITCH

W/Cab, VAR.838

2шт.

External PTO

1шт.

32

87399620

TOGGLE SWITCH

W/CAB , VAR.094-838, Start Serial: D5362

1шт.

Modulated PTO Switch

1шт.

33

87302930

SWITCH

1шт.

34

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

35

5182315

BRACKET

1шт.

W/Mechanical Differential

1шт.
