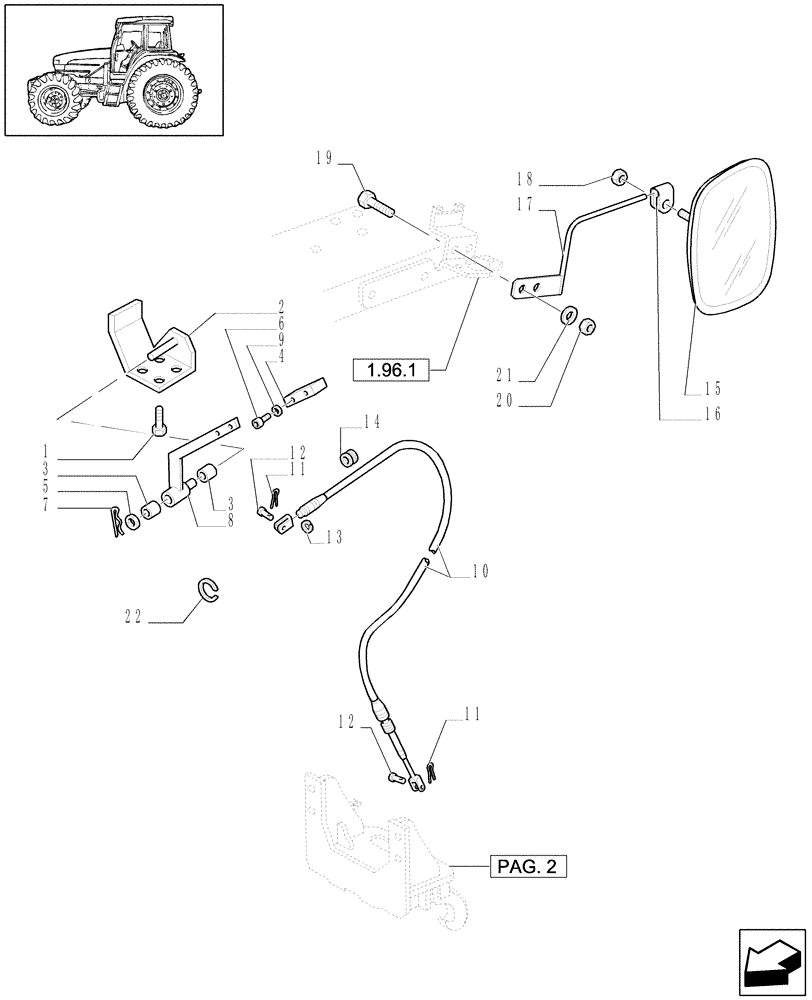

Запчасти Case IH JX1100U (1.89.3/02[01]) - (VAR.929) TOW HOOK AND DRAWBAR (PICK-UP) - MIRRORS & FLEXIBLE CABLE (09) - IMPLEMENT LIFT

1

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

2

82005554

BRACKET

1шт.

3

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

4

5126312

KNOB

1шт.

5

83909861

WASHER,13.72mm ID x 26.92mm OD x 2.41mm Thk

G8

2шт.

6

5113531

SCREW,M4 x 10mm, Cl 8.8

M4 x 10

2шт.

7

10733601

COTTER PIN,M3.2 x 22

1шт.

8

82004010

LEVER

1шт.

9

10569074

LOCK WASHER

D=4

2шт.

10

82011917

FLEXIBLE CABLE

1шт.

11

83957394

PIN,0.072" x 0.82"

2шт.

12

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

2шт.

13

9635806

CIRCLIP,Ext., 0.392" Dia

1шт.

14

81864614

GROMMET

1шт.

15

47124399

REAR VIEW MIRROR,143mm x 192mm

W/Cab

1шт.

16

5144871

CLIP

W/Cab

1шт.

17

5177985

SUPPORT

W/Cab

6шт.

18

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

19

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

20

15896214

NUT,M6, Cl 8

4шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

22

14496921

WASHER,17mm ID x 30mm OD x 3mm Thk

9шт.
