Запчасти Case IH JX1100U (1.82.7/17A[01]) - (VAR.239) 1CONTROL VALVE + 1W/FLOAT + 1W/FLOAT AND KICKOUT - PARTS - C5631 (07) - HYDRAULIC SYSTEM

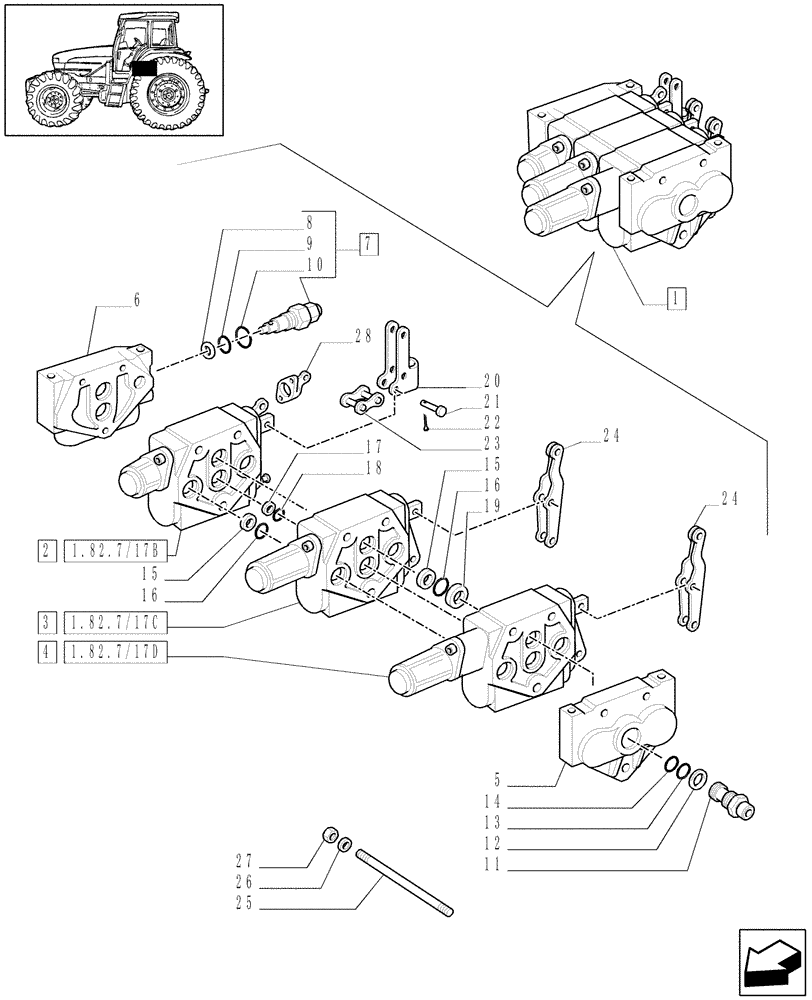

Схема запчастей Case IH JX1100U - (1.82.7/17A[01]) - (VAR.239) 1CONTROL VALVE + 1W/FLOAT + 1W/FLOAT AND KICKOUT - PARTS - C5631 (07) - HYDRAULIC SYSTEM
6
7
26
1.82.7/17b
1.82.7/17d
1.82.7/17c
3
14
8
1
19
9
15
12
16
21
18
20
25
23
11
22
10
15
5
4
16
27
24
17
13
2
24
28

Артикул

Название

Примечание

Количество

1

87303336

CONTROL VALVE

Assy

1шт.

2

5154667

CONTROL VALVE

Assy

1шт.

3

87303331

CONTROL VALVE

Assy

1шт.

4

87303332

CONTROL VALVE

Assy

1шт.

5

5146541

COVER

1шт.

6

5116841

HYD VALVE SECTION

1шт.

7

5131906

SAFETY VALVE

Assy

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

11

5146535

COUPLING,M22 x 1.5 x 3/4"

1шт.

12

5116854

O-RING,27.05mm ID x 34.93mm OD x 3mm Thk

1шт.

13

5146476

RING,17.91mm ID x 20.61mm OD x 1.24mm Thk

1шт.

14

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

1шт.

15

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

12шт.

16

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

12шт.

17

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

4шт.

18

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

19

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

4шт.

20

5126027

LINK

1шт.

21

5126824

PIN,6.4mm OD x 21.5mm L

3шт.

22

10734301

COTTER PIN,M2 x 18

3шт.

23

5116896

LINK,19.05mm Pitch

3шт.

24

47134472

CLEVIS

2шт.

25

5146463

THREADED ROD,3/8" - 24 x 7-5/8"

L=193.5

3шт.

26

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

3шт.

27

5116857

NUT,3/8" - 24

6шт.

28

5116887

SUPPORT

1шт.

Выбрано товаров: 28
