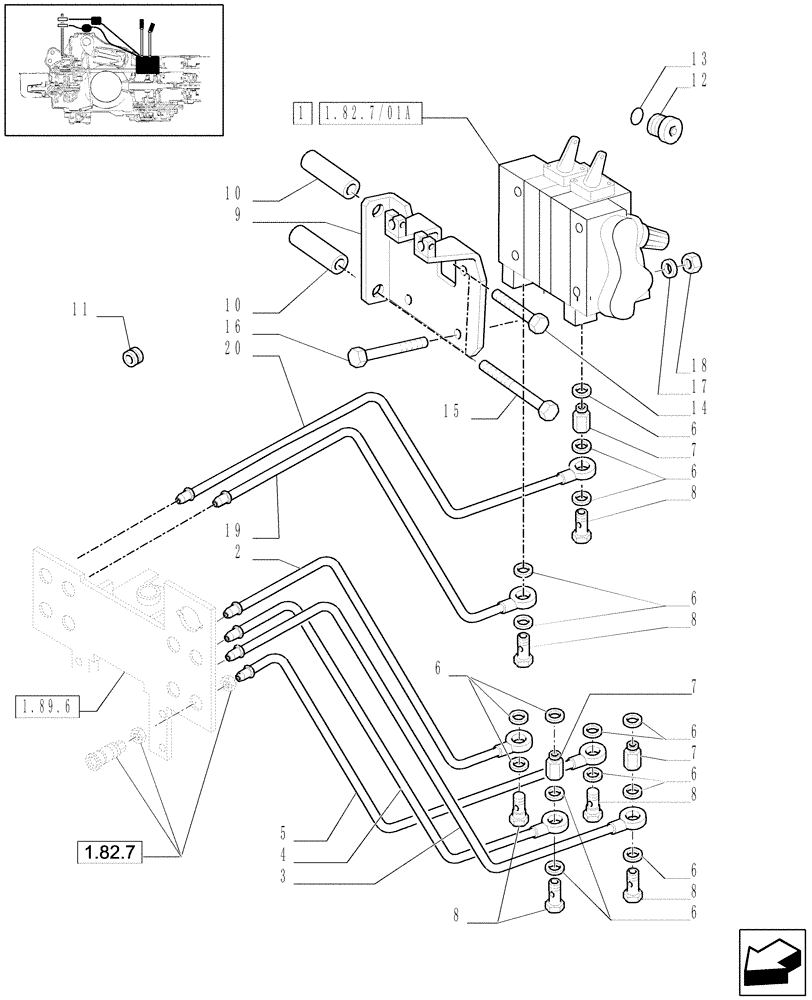

Запчасти Case IH JX1100U (1.82.7/16[01]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - SUPPORT & PIPES - D4936 (07) - HYDRAULIC SYSTEM

1

47131855

CONTROL VALVE

1шт.

2

47123638

HYD TUBE

502.2mm L.

1шт.

3

47123640

HYD TUBE

459.9mm L.

1шт.

4

47123639

HYD TUBE

539.4mm L.

1шт.

5

47123637

TUBE

570.5mm L.

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

18шт.

7

5128338

HYD CONNECTOR,M22 x 1.5 x M22 x 1.5

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

6шт.

9

47132570

BRACKET

L/Cab

1шт.

10

5179421

SPACER

L/Cab

2шт.

11

10403080

GROMMET

2шт.

12

10273140

PLUG,Hex Skt, M18 x 1.5

4шт.

13

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

4шт.

14

15981524

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

L/Cab

1шт.

15

15864224

BOLT,Hex, M16 x 1.5 x 115mm, Cl 8.8

L/Cab

1шт.

16

15971321

SCREW,Hex, M10 x 1.25 x 75mm, Cl 8.8

L/Cab

4шт.

17

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

L/Cab

4шт.

18

12164721

NUT,M10 x 1.25, Cl 10

L/Cab

4шт.

19

47123641

HYD TUBE

W/Cab

1шт.

20

47123642

HYD TUBE

W/Cab

1шт.
