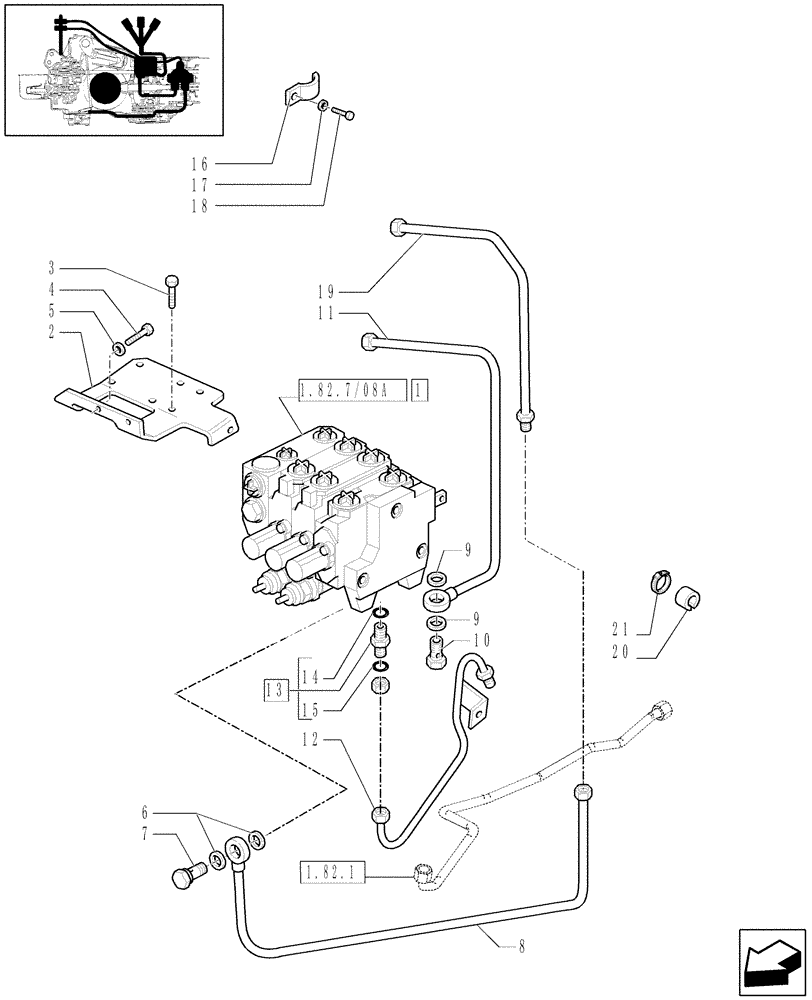

Запчасти Case IH JX1100U (1.82.7/04[01]) - (VAR.419) THREE CONTROL VALVES BOSCH - PIPES & CONTROL VALVES (07) - HYDRAULIC SYSTEM

1

47129343

CONTROL VALVE

1шт.

2

47123301

SUPPORT

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

4

11109221

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

4шт.

5

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

7

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

8

47123636

HYD TUBE

1шт.

9

47124968

SEALING WASHER

D=27

2шт.

10

47124882

BANJO BOLT

1шт.

11

47123635

HYD TUBE

1шт.

12

47123633

HYD TUBE

, Serial Range: -C5143

1шт.

13

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

15

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

16

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

17

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

18

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

19

5179392

HYD TUBE

1шт.

20

4959735

SPACER,18mm ID x 25mm OD x 30mm L

, Start Serial: D5143

1шт.

21

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80, Start Serial: D5143

1шт.
