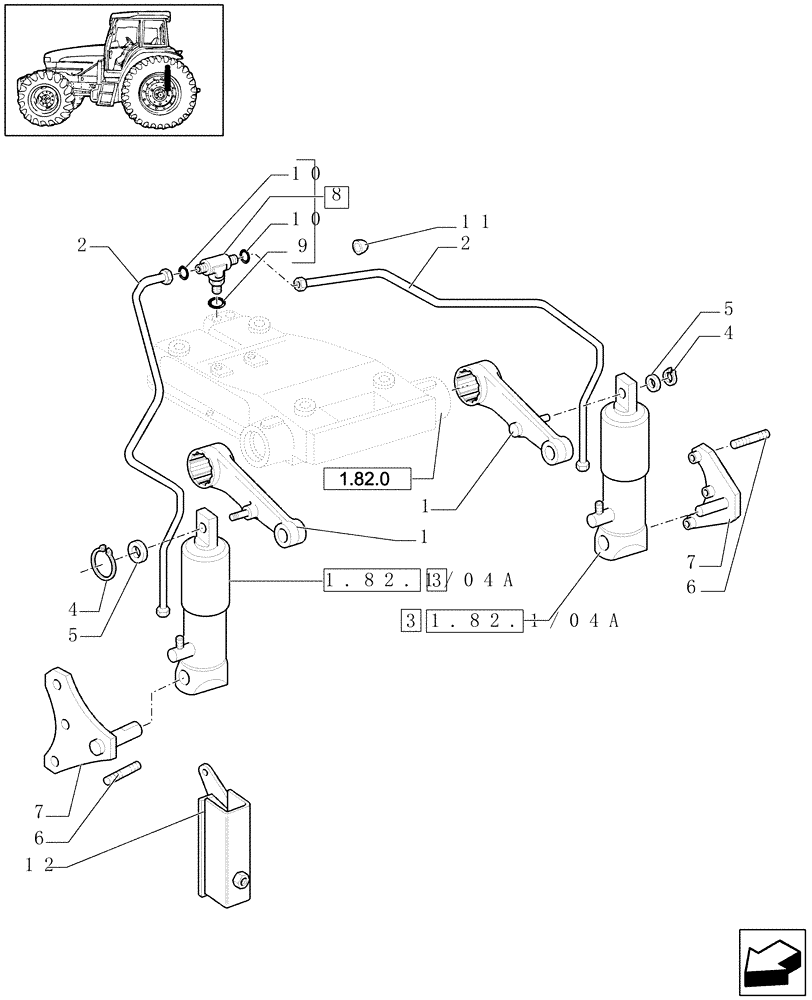

Запчасти Case IH JX1100U (1.82.1/02[01]) - (VAR.784) VERSION WITH TWO ADDITIONAL JACKS (07) - HYDRAULIC SYSTEM

1

5183176

LIFT ARM

LH

1шт.

1

5173542

LIFT ARM

RH

1шт.

2

47123654

HYD TUBE

RH

1шт.

2

47123658

HYD TUBE

LH

1шт.

3

5171351

JACK

SIMA Supplier

2шт.

3

5171352

JACK

GEA Supplier

2шт.

3

5174287

JACK

OGNIBENE Supplier

2шт.

4

11067676

SNAP RING,M28, Ext

1шт.

5

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

28X40X3

1шт.

6

5171503

STUD

6шт.

7

5180166

SUPPORT

LH

1шт.

7

5182277

SUPPORT

RH

1шт.

8

47123659

TEE

3 WAY, 13/16"-16UN-M18X1,5

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

10

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

0.500" x .070"

2шт.

11

14328801

PLUG,M22, Tapered

1шт.

12

5181430

BRACKET

1шт.
