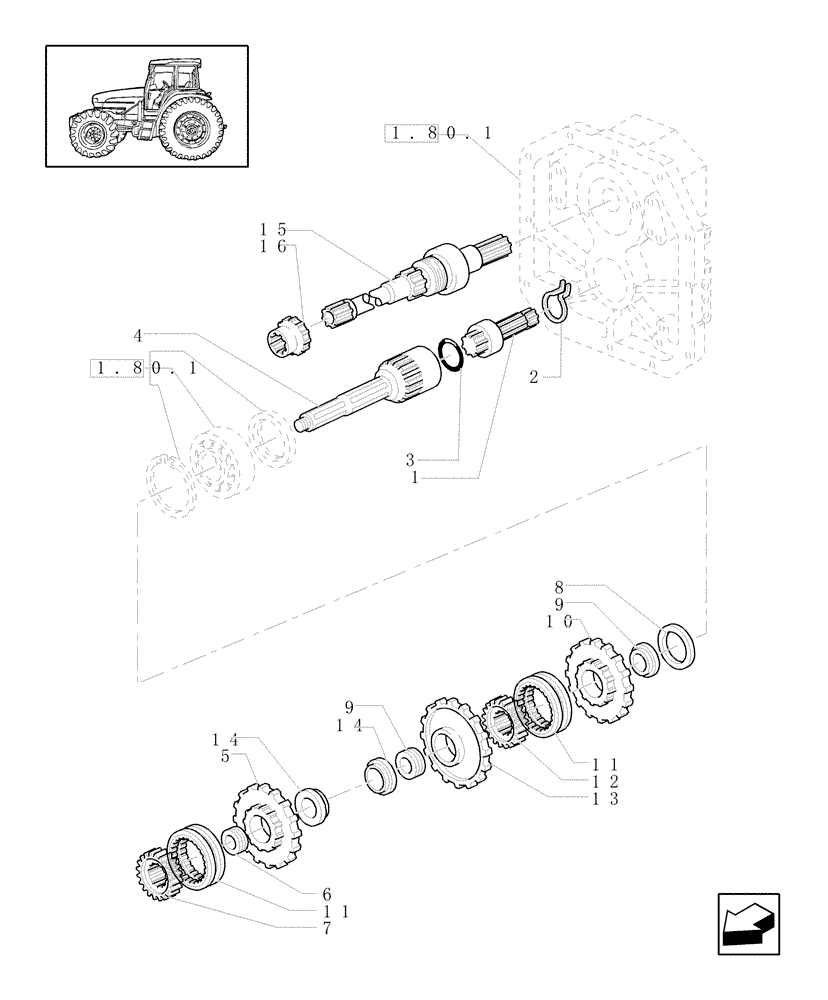

Запчасти Case IH JX1100U (1.80.1/08) - (VAR.729/1) SYNCHRO MESH GEARED POWER TAKE-OFF 540 - 750 - 1000 RPM - GEAR SHAFTS (07) - HYDRAULIC SYSTEM

1

47133081

PTO SHAFT

540 RPM

1шт.

1

47133076

PTO SHAFT,162mm L

1000 PPM

1шт.

2

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

3

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.

4

5198354

SHAFT

1шт.

5

5170029

GEAR

750 RPM

1шт.

6

5162787

RING RACE

1шт.

7

5162794

GEAR,12T Internal / 24T External

1шт.

8

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

9

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

10

5170030

DRIVEN GEAR

1000 RPM

1шт.

11

5129513

SYNCHRONIZER,24T

2шт.

12

5129512

SLEEVE,24T, 14T

1шт.

13

5170028

DRIVEN GEAR

540 RPM

1шт.

14

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

15

5176747

DRIVEN SHAFT

1шт.

16

5165967

DRIVING GEAR

1шт.
