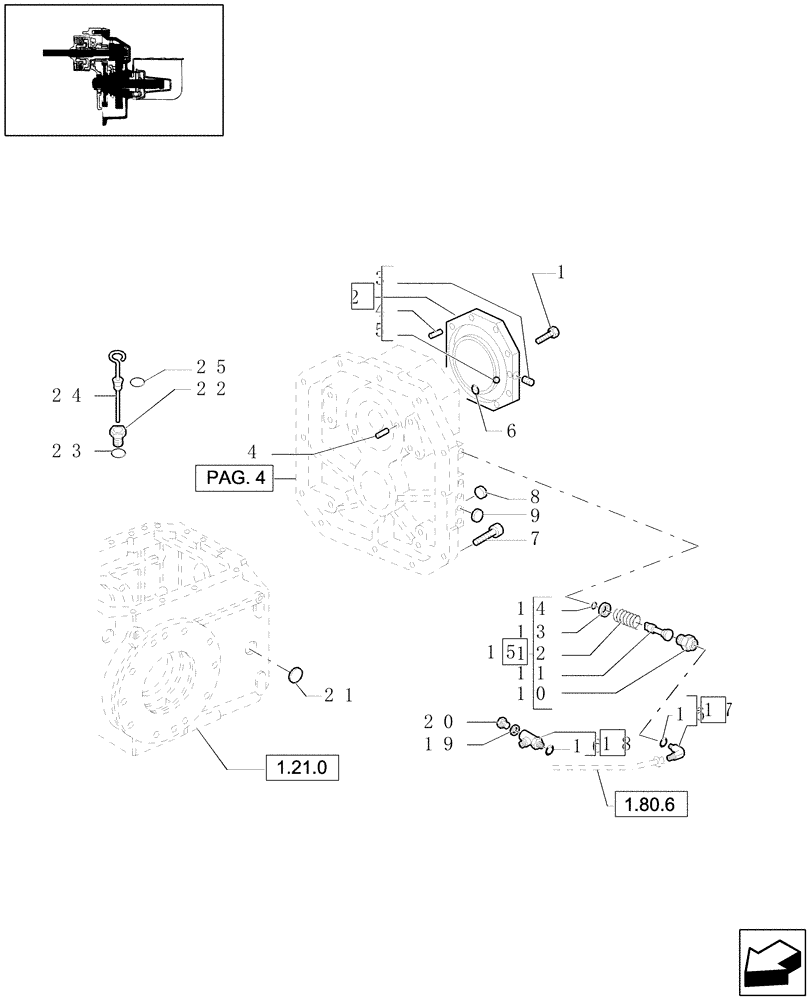

Запчасти Case IH JX1100U (1.80.1[03]) - POWER TAKEOFF - COVER & VALVE (07) - HYDRAULIC SYSTEM

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

2

5165974

COVER

1шт.

3

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

1шт.

4

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

5

20419310

BALL

7,938mm (5/16") OD

1шт.

6

80128359

O-RING

-016, 70 Duro, .614" ID x .070" Thk

1шт.

7

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

7

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

7

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

8

14328601

PLUG,M18, Tapered

1шт.

9

14328701

PLUG,M20, Tapered

1шт.

10

5165488

HYD CONNECTOR,M18 x 1.5, 9 mm L

1шт.

11

5165484

VALVE

1шт.

12

5105968

SPRING

1шт.

13

5165438

SHIM,9.1mm ID x 13.5mm OD x 2.5mm Thk

1шт.

14

5165486

CIRCLIP,9mm

1шт.

15

5170391

VALVE

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

17

47125351

ELBOW

1шт.

18

5174050

TEE

1шт.

19

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10 x 16 x 1

1шт.

20

11903040

PLUG,M10 x 1 x 11, Brass

1шт.

21

14328501

PLUG,M16, Tapered

1шт.

22

5169718

PLUG,M22 x 1.5

1шт.

23

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

24

5169720

DIPSTICK,207mm L

Fluid Level

1шт.

25

14452881

O-RING,7.65mm ID x 1.78" Width

1шт.
