Запчасти Case IH JX1100U (1.75.4/ A[01A]) - FUSEBOX - D5184 (06) - ELECTRICAL SYSTEMS

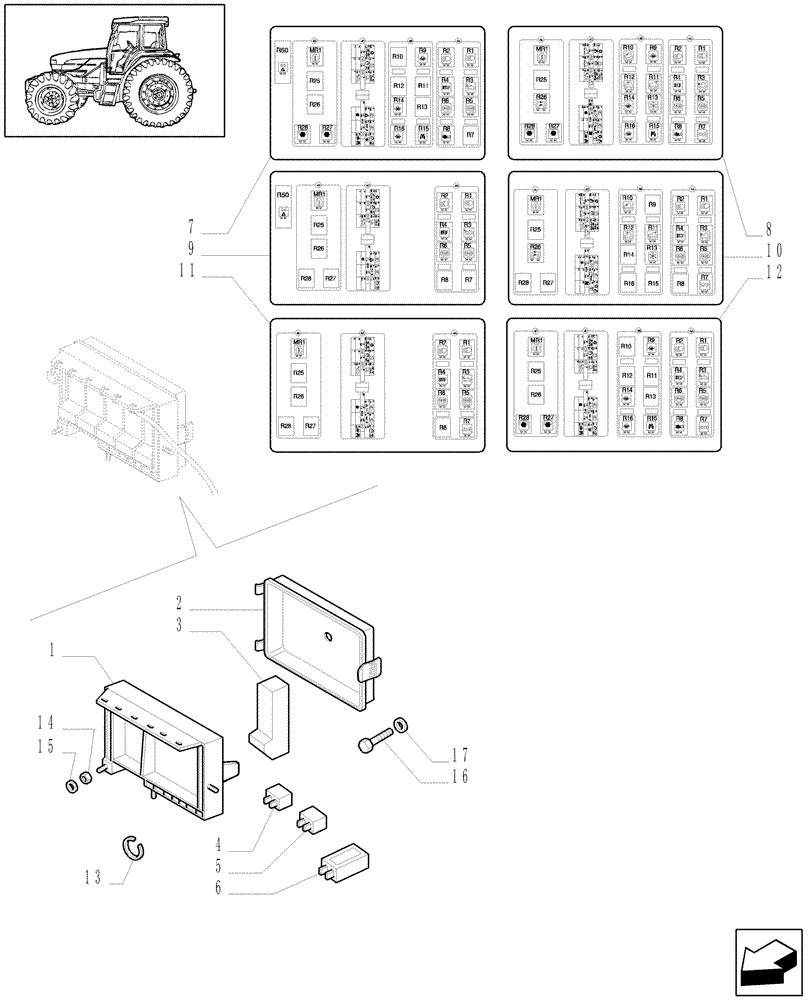

Схема запчастей Case IH JX1100U - (1.75.4/ A[01A]) - FUSEBOX - D5184 (06) - ELECTRICAL SYSTEMS
17
15
12
13
3
14
16
9
10
6
4
2
1
8
7
11
5

Артикул

Название

Примечание

Количество

1

87314764

COVER

1шт.

2

87314759

COVER

1шт.

3

87314761

FUSE HOLDER

Fuses, 64 Way

1шт.

3

87314762

FUSE HOLDER

Relays, 48 Way

1шт.

3

87314763

FUSE HOLDER

Relays, 24 Way

1шт.

4

10395890

FUSE,5A, Mini, Beige

Fuse, 5A

1шт.

4

87522597

FUSE,10A, Mini, Red

Fuse, 10A

1шт.

4

87524877

FUSE,15A, Mini, Blue

Fuse, 15A

1шт.

4

10401290

FUSE,25 amp Mini

Fuse, 25A

1шт.

5

5171083

RELAY,12V, 20A, N.O.

Relay, 12V-20A, Enclosure

1шт.

5

5171084

RELAY,12V, 20A, N.C.

Relay, 12V-20A, Commutation

1шт.

5

87341931

RELAY,Mini ISO, 12V, 70A

Relay, 12V-70A

1шт.

5

5179765

DIODE,6A, 400V

W/CAB, Diodes Relay

1шт.

5

5155317

RELAY,12V, 30A

W/Cab

1шт.

6

5180717

FLASHER UNIT

Pektron Relay

1шт.

7

87358914

DECAL

L/CAB

1шт.

8

87358928

DECAL

W/CAB

1шт.

9

87358917

DECAL

L/CAB

1шт.

For VAR.275-279, with Power Shuttle, ISO

1шт.

10

87358931

DECAL

W/CAB

1шт.

For VAR.275-279-279/1-748, with Power Shuttle

1шт.

11

87358922

DECAL

L/CAB

1шт.

For VAR.279/1-748, with Power Shuttle, NA

1шт.

12

87358920

DECAL

L/CAB

1шт.

For VAR.007-039, NA

1шт.

13

5143428

CABLE TIE,116mm L

CABLE STRAP

1шт.

14

15896211

NUT,M6, Cl 8

3шт.

15

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

3шт.

16

13273917

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd

1шт.

17

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

Выбрано товаров: 30
