Запчасти Case IH JX1100U (1.75.4[02]) - VARIOUS ELECTRIC CABLES - C5184 (06) - ELECTRICAL SYSTEMS

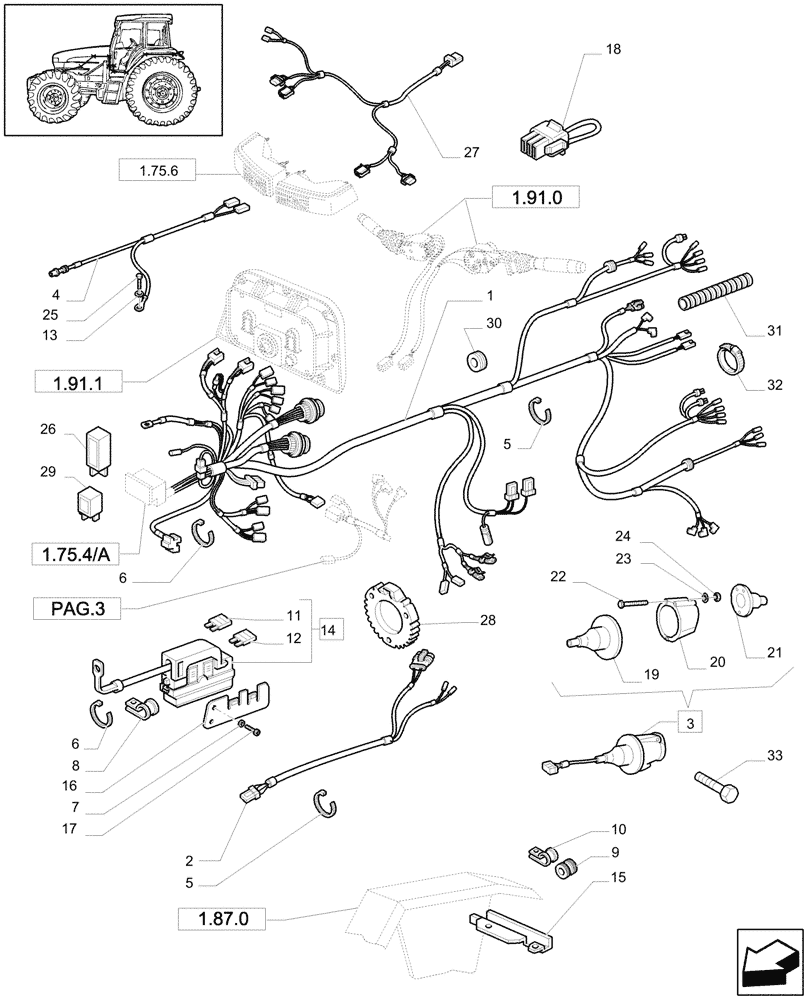

Схема запчастей Case IH JX1100U - (1.75.4[02]) - VARIOUS ELECTRIC CABLES - C5184 (06) - ELECTRICAL SYSTEMS
32
21
25
14
28
10
11
12
17
23
29
2
5
18
6
9
24
16
13
5
22
27
6
19
7
4
1.75.6
26
15
30
1
3
8
31
20
33

Артикул

Название

Примечание

Количество

1

47135325

WIRE HARNESS

L/Cab, INCL.26, 28, 30, 31

1шт.

1

47135326

WIRE HARNESS

L/Cab, INCL.28, 30, 31

1шт.

With Power Shuttle 30KM/H and 40KM/H (Equip. 275-279)

1шт.

1

47135327

WIRE HARNESS

L/Cab, NA, INCL.28, 30, 31

1шт.

W/North America version (Equip. 007-039)

1шт.

1

47135328

WIRE HARNESS

L/Cab, NA, INCL.28, 30, 31

1шт.

W/Power Shuttle 30KM/H and 24X12 40KM/H Hi-Lo Power Shuttle Hydraulic PTO (Equip.279-748/1)

1шт.

2

47126616

ELECTRIC CABLE

Rear

1шт.

Front Lamps/Headlamps Extension (Roof)

1шт.

3

5198911

WIRE HARNESS

1шт.

4

5184236

WIRE HARNESS

25A Socket

1шт.

5

5143428

CABLE TIE,116mm L

CABLE STRAP L/Cab

1шт.

6

14560287

CABLE TIE,207.00mm L

COLLAR L/Cab

1шт.

7

12601071

LOCK WASHER

2шт.

8

5179441

BRACKET

1шт.

9

10403080

GROMMET

L/Cab

2шт.

10

5145401

CLAMP

1шт.

11

5190333

FUSE,40A, Maxi, Orange

40 AMP

2шт.

12

5173263

FUSE,50A, Maxi, Red

50 AMP

2шт.

13

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

14

47134102

FUSE BOX

1шт.

15

5173056

SHIELD

LH, L/Cab

1шт.

16

5186004

SUPPORT

1шт.

17

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

18

5189234

BRIDGE

1шт.

19

83990207

BOOT

1шт.

20

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

21

5102234

CAP

1шт.

22

13272924

SCREW,M4 x 35mm

M4x35

3шт.

23

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

24

10794014

NUT,M4, Cl 8

3шт.

25

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

26

5180717

FLASHER UNIT

1шт.

27

47133942

ELECTRIC CABLE

1шт.

Front Headlamps Harness (Hood)

1шт.

27

47133943

ELECTRIC CABLE

VAR.007

1шт.

Front Headlamps Harness (Hood)

1шт.

28

87304370

PROTECTION CAP

1шт.

29

5179765

DIODE,6A, 400V

1шт.

30

10397380

GROMMET

12x2.5

2шт.

30

10398480

GROMMET,18mm ID x 25mm Groove D x 33mm OD

18x5

1шт.

31

5193961

TUBE

1шт.

Выбрано товаров: 42
