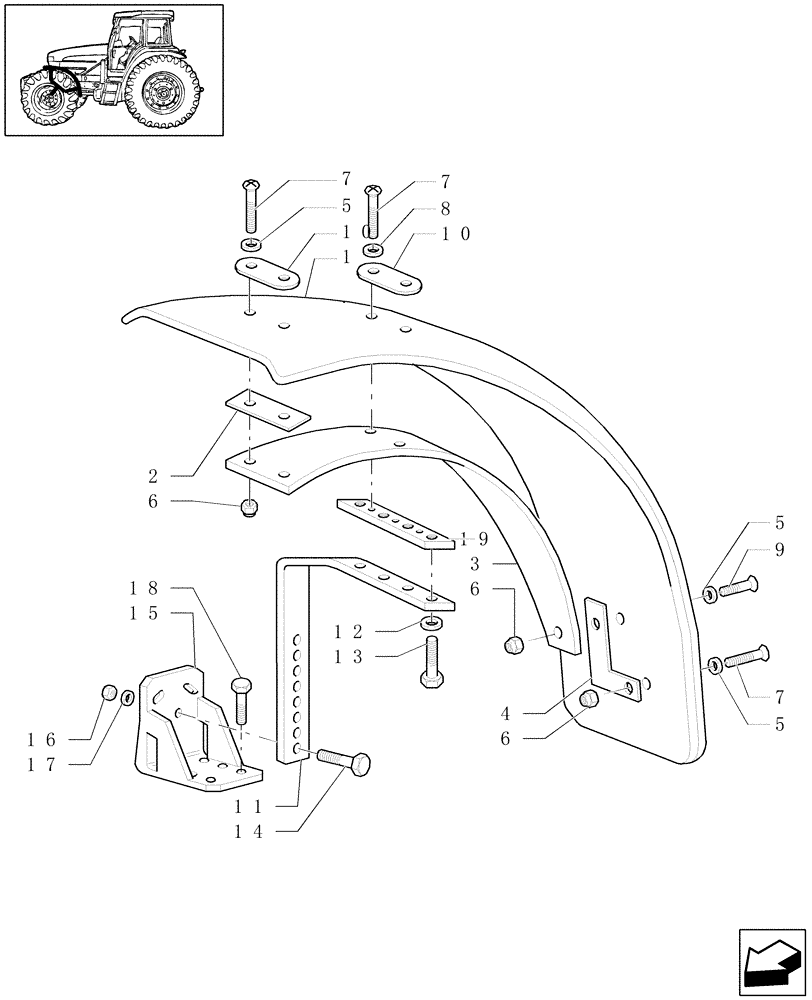

Запчасти Case IH JX1100U (1.43.0/01[02]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - MUDGUARDS (04) - FRONT AXLE & STEERING

1

5122325

FRONT FENDER

2шт.

2

5148601

PLATE

2шт.

3

5148597

PANEL

1шт.

3

5148596

PANEL

1шт.

4

5148600

REINFORCEMENT

RH

3шт.

4

5149441

REINFORCEMENT

LH

3шт.

5

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

7

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

10шт.

8

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

9

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

10

5148599

REINFORCEMENT

4шт.

11

5148594

SUPPORT

LH

1шт.

11

5148595

SUPPORT

RH

1шт.

12

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

13

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

14

11227024

BOLT,Hex, M14 x 1.5 x 65, 8.8

4шт.

15

5182393

SUPPORT

2шт.

16

12574815

LOCK NUT,M14 x 1.5, Cl 8

4шт.

17

10520104

WASHER,14.4mm ID x 26mm OD x 3mm Thk

2шт.

18

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

8шт.

19

5148598

PLATE

2шт.
