Запчасти Case IH JX1100U (1.40. 7/06[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING

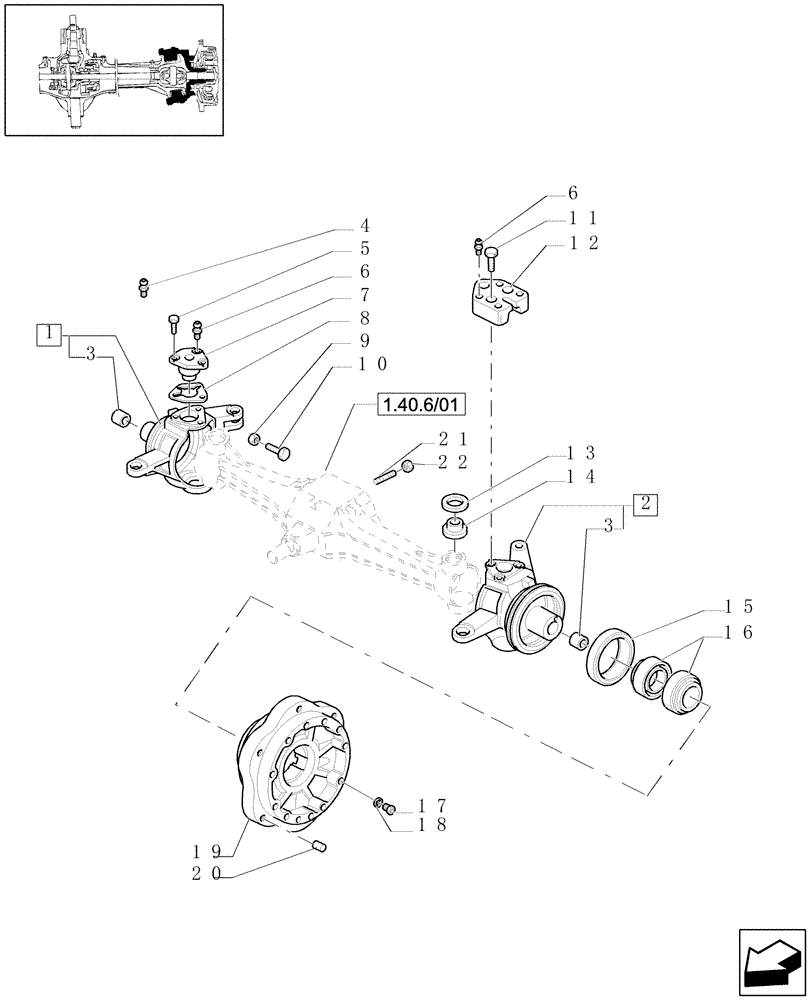

Схема запчастей Case IH JX1100U - (1.40. 7/06[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING
22
6
6
7
2
3
18
5
1
12
9
8
16
3
19
17
14
21
10
11
13
4
15
20

Артикул

Название

Примечание

Количество

1

5181313

GLAND

RH

1шт.

2

5181288

GLAND

LH

1шт.

3

5104199

BUSHING

42 x 46 x 28

2шт.

4

13413290

BREATHER

2шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

6

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

7

5137239

BALL STUD

BALL PIN

4шт.

8

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

8

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

8

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

MM0.2

1шт.

8

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

MM0.30

1шт.

9

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

10

5167638

SCREW

2шт.

10

5173991

STOP,Steering

2шт.

11

14274734

LOCK BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9

2шт.

11

14274834

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

4шт.

12

5182371

PLATE

1шт.

12

5189846

PLATE

RH

1шт.

13

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70x56x7.5

4шт.

14

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

15

5133736

SEAL,186.2mm ID x 220mm OD x 20mm Thk

190 x 220 x 21, Serial Range: -C5189

2шт.

15

5183844

SEAL

190 x 220 x 21, Start Serial: D5189

2шт.

15

87309584

OIL SEAL,165mm ID x 190mm OD x 16.5mm Thk

2шт.

16

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

17

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

18

10282260

SEAL,28.4mm ID x 36mm OD x 1.5mm Thk

2шт.

19

5177838

HUB

, Serial Range: -C5189

2шт.

19

87331022

HUB

, Start Serial: D5189

2шт.

20

4985063

DOWEL,12mm OD x 20mm L

12 x 20

2шт.

Выбрано товаров: 30
