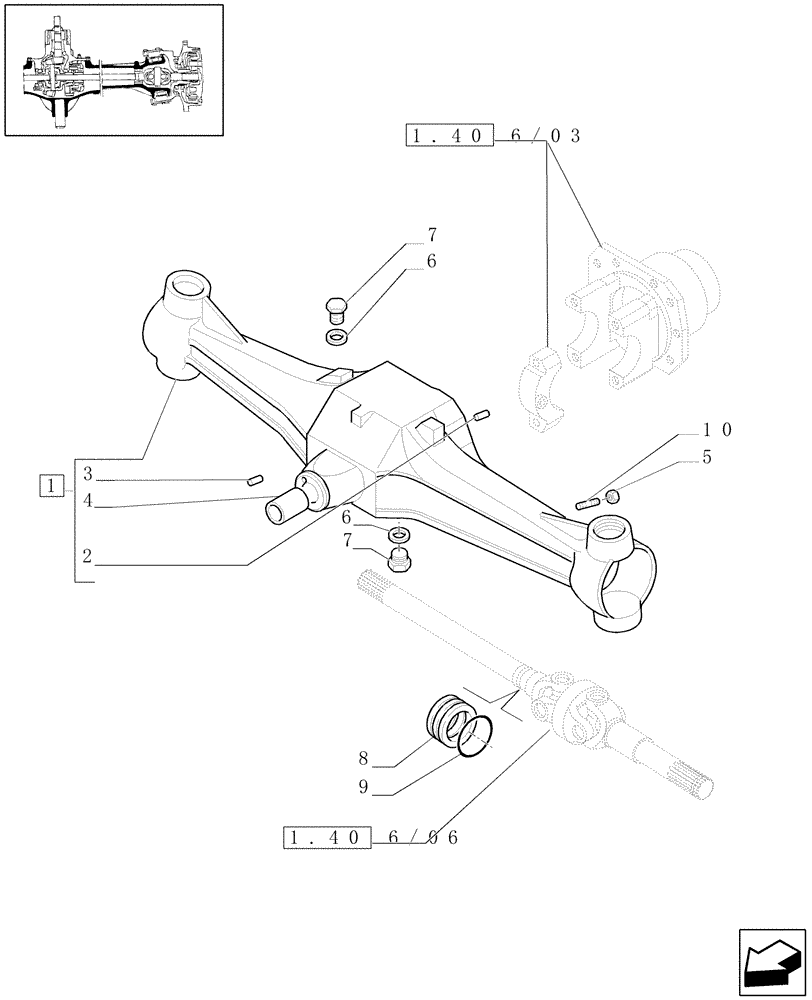

Запчасти Case IH JX1100U (1.40. 6/01[02]) - (VAR.325) STANDARD - FRONT AXLE CASING (04) - FRONT AXLE & STEERING

1

5164327

AXLE HOUSING

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

7

10305171

PLUG,M22 x 1.5 x 21

2шт.

8

4996755

BUSHING

1шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62

1шт.

10

87309002

SET SCREW

M12x1.25x65

2шт.
