Запчасти Case IH JX1100U (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL

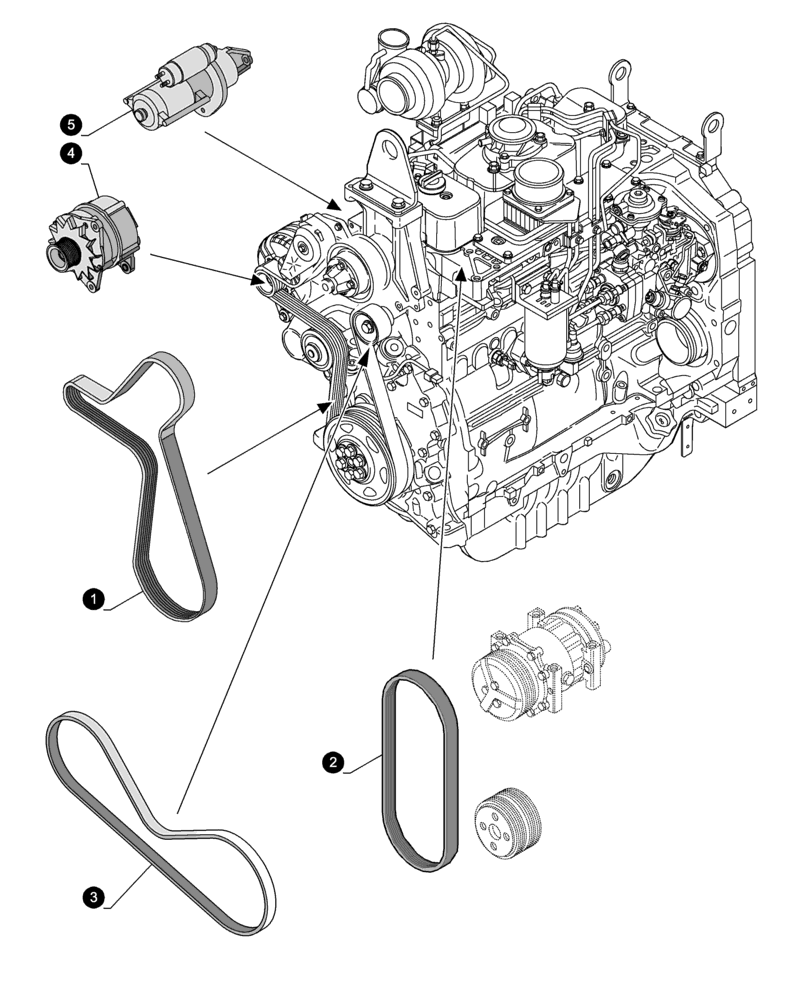

Схема запчастей Case IH JX1100U - (0.05.4[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (00) - GENERAL
5
2
4
3
1

Артикул

Название

Примечание

Количество

1

47131754

V-BELT,28.48 mm W x 1381.00 mm L, 8 Ribs

Main Drive

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

1

J911587

V-BELT,27.92mm W x 1363.1mm L, 8 Ribs

Main Drive

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

2

47129821

BELT

A/C Compressor

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

3

87382455

BELT,14.24 mm W, 1090mm L, 4 Ribs

Air Brakes

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

47129299

ALTERNATOR

On Engine

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

87311822

ALTERNATOR,120A, W/ Pulley

On Engine

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

5

84208903

STARTER MOTOR,12V, 4.2kW

On Engine

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, X1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

Выбрано товаров: 14
