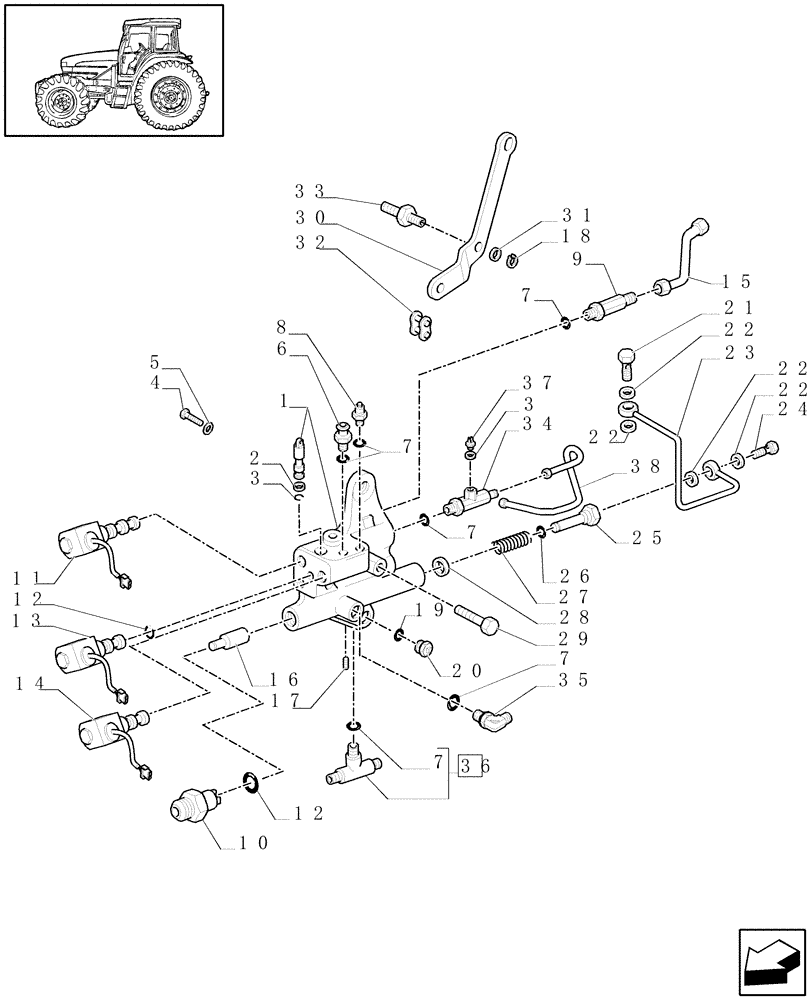

Запчасти Case IH JX1100U (1.33.2/01[02A]) - IDLER CONTROLS 4WD - PIPES & SOLENOID VALVES - D5642 (04) - FRONT AXLE & STEERING

1

5174902

SUPPORT

Incl.16, 17

1шт.

2

5137965

SCRAPER RING

1шт.

3

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

4

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

5

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

6

5174063

HYD CONNECTOR,1/2-14, M18 x 1.5

M18x1.5, 1/2"-20

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

7шт.

8

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

M18x1.5, 3/4"-16

1шт.

9

5162919

EXTENSION

M18x1.5, 3/4"-16

1шт.

10

87542115

HYD CONNECTOR

1шт.

11

5164627

SOLENOID

Diff. Lock

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5164628

SOLENOID

4WD

1шт.

14

5167139

SOLENOID VALVE

PTO

1шт.

15

5162915

TUBE

3/4"-16

1шт.

16

5169220

HYDRAULIC VALVE

Maximum Pressure

1шт.

17

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10x1.25

7шт.

18

11065976

CIRCLIP,M10, Ext

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

87537082

PLUG

1шт.

21

11903817

BANJO BOLT

1шт.

22

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10x16x1.5

4шт.

23

5169701

TUBE

1шт.

24

5169835

BANJO BOLT

1шт.

25

5196410

PLUG

1шт.

26

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

27

5157119

SPRING,11.5mm x 127mm

1шт.

28

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

29

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12x105

1шт.

30

47124611

LEVER

1шт.

31

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

10x18

1шт.

32

5166277

CHAIN LINK

1шт.

33

47124612

SCREW

1шт.

34

5169207

HYD CONNECTOR

1шт.

35

87615926

HYD CONNECTOR

1шт.

36

87616144

HYD CONNECTOR

1шт.

37

87384756

SWITCH ASSY

1шт.

38

87395974

TUBE,12 mm OD

4WB Delivery

1шт.
