Запчасти Case IH JX1100U (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

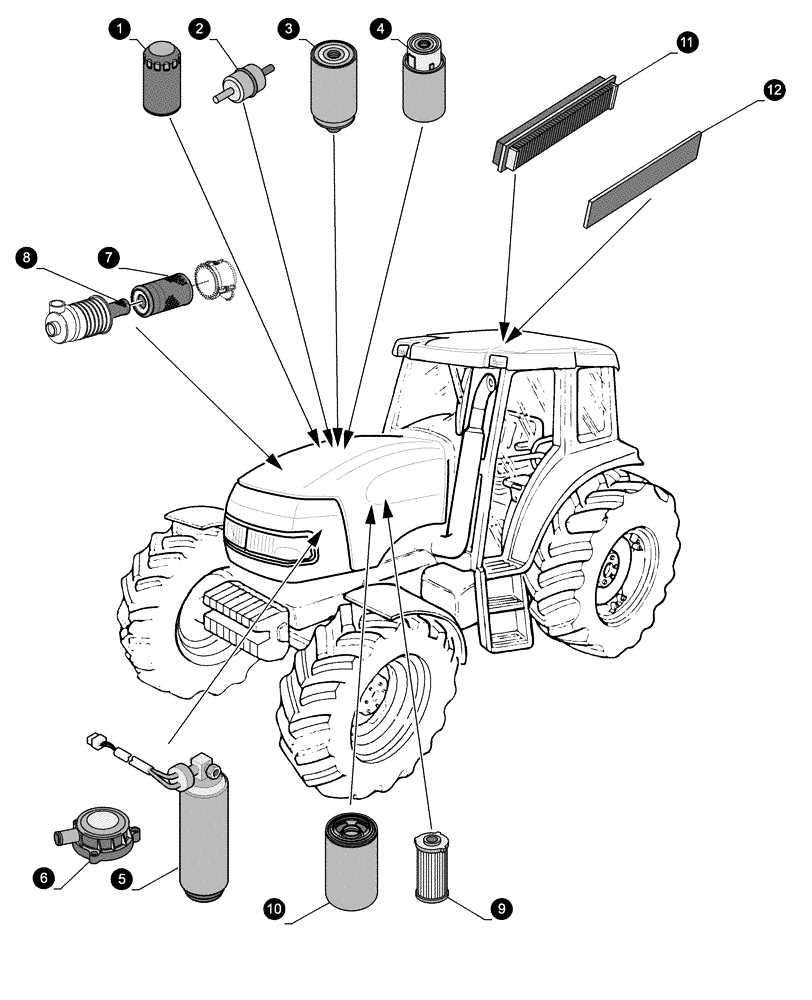

Схема запчастей Case IH JX1100U - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
4
12
3
10
5
1
6
8
11
7
9
2

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

2

87329736

FUEL FILTER

Primary, Strainer In Line, Every 600 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

3

84565884

FUEL FILTER,75.8mm OD x 172mm L, M16 x 1.5 - 6H

Primary, Every 600 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

4

2854796

FUEL FILTER

Primary, Every 600 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

5

5165615

RECEIVER-DRYER

Primary Cartridge

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

6

500315794

BREATHER

Oil Vapour Separator

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

7

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Outer Cartridge, Every 1200 hours or annually

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

8

87682999

AIR FILTER,74.1mm ID x 94.6mm OD x 339.5mm L

Inner Cartridge, Every 1200 hours or annually

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

9

5194879

ELEMENT

Transmission/Pump, Every 300 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

10

84257511

HYDRAULIC OIL FILTER,138.00mm OD

Transmission/Pump, Every 300 hours

1шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

11

5196842

CAB FILTER

Outer Cartridge, Foam, Every 1200 hours or annually

2шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

12

82033107

AIR FILTER

Outer Cartridge, Foam, Every 1200 hours or annually

2шт.

Valid with JX1070U-TRACTOR, JX1080U-TRACTOR, JX1090U-TRACTOR, JX1100U-TRACTOR Models

1шт.

Выбрано товаров: 24
