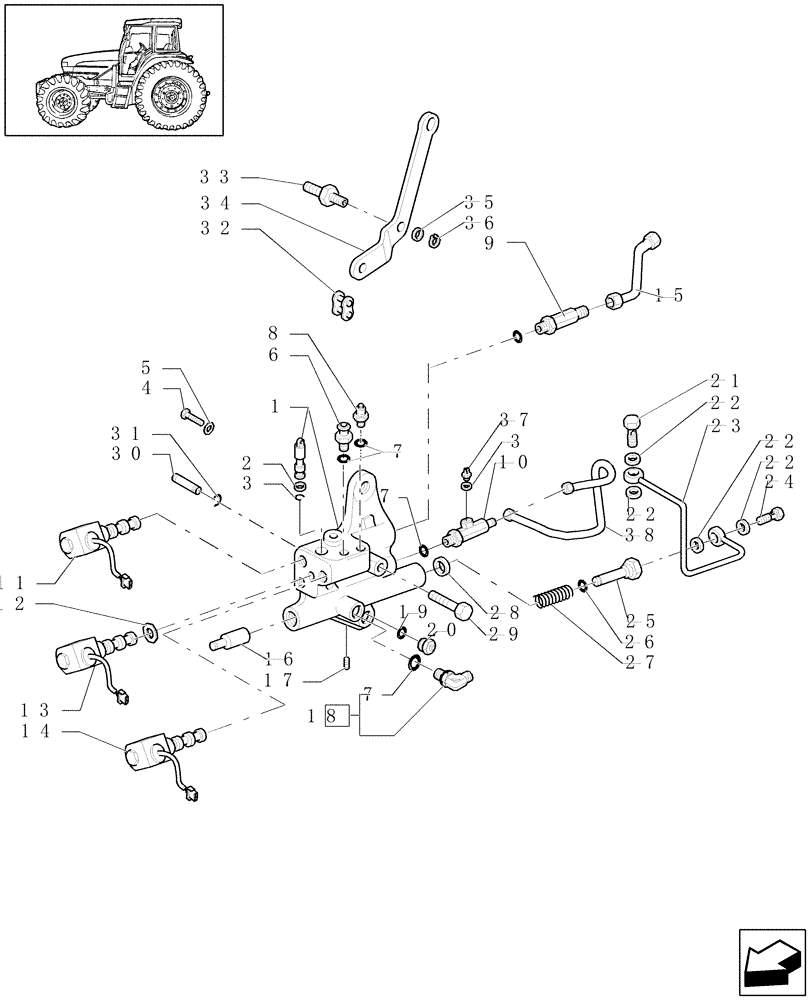

Запчасти Case IH JX1100U (1.33.2/01[02]) - IDLER CONTROLS - 4WD - PIPES & SOLENOID VALVES - C5642 (04) - FRONT AXLE & STEERING

1

5174902

SUPPORT

1шт.

2

5137965

SCRAPER RING

1шт.

3

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

4

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

5

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

6

5174063

HYD CONNECTOR,1/2-14, M18 x 1.5

M18x1.5, 1/2"-20

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

5шт.

8

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

M18x1.5, 3/4"-16

1шт.

9

5162919

EXTENSION

M18x1.5,3/4"-16

1шт.

10

5169207

HYD CONNECTOR

1шт.

11

5164627

SOLENOID

Diff. Lock

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5164628

SOLENOID

4WD

1шт.

14

5167139

SOLENOID VALVE

PTO

1шт.

15

5162915

TUBE

3/4"-16

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

7шт.

18

5155452

ELBOW

M18x1.5, 7/8"-16

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5174927

PLUG

1шт.

21

11903817

BANJO BOLT

10 x 1.25 x 19

1шт.

22

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

23

5169701

TUBE

1шт.

24

5169835

BANJO BOLT

1шт.

25

5196410

PLUG

1шт.

26

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

27

5157119

SPRING,11.5mm x 127mm

1шт.

28

13550101

WASHER

1шт.

29

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 1.25 x 105

1шт.

30

5174926

PIPE COUPLING

1шт.

31

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

32

5166277

CHAIN LINK

1шт.

33

47124612

SCREW

1шт.

34

47124611

LEVER

1шт.

35

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

10x18

1шт.

36

11065976

CIRCLIP,M10, Ext

1шт.

37

82032837

SWITCH ASSY

1шт.

38

87395974

TUBE,12 mm OD

4WD Delivery, 3/4"-16 / 12

1шт.
