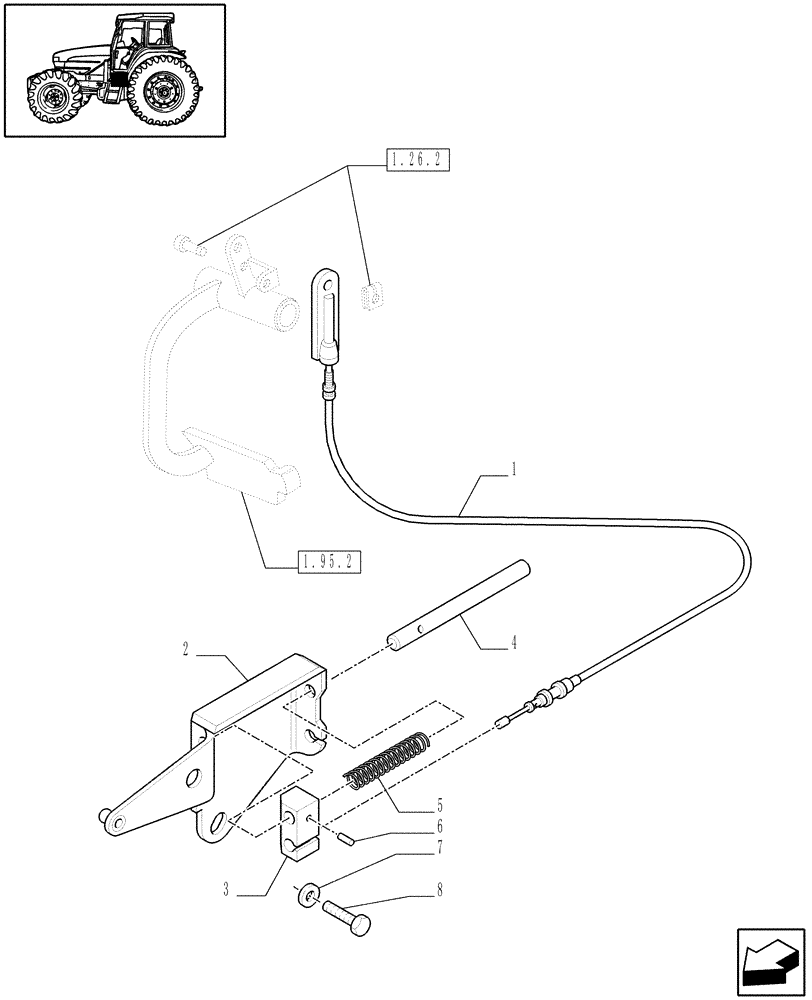

Запчасти Case IH JX1100U (1.28.1/04) - (VAR.109-110-113-119) SYNCHRONIZED MECHANICAL REVERSER UNIT - 24X24 HI-LO CLUTCH ENGAGEMENT (03) - TRANSMISSION

1

87342322

CABLE

ASSY

1шт.

2

87342315

BRACKET

1шт.

3

87342320

BLOCK

1шт.

4

87342321

PIN

1шт.

5

87363968

SPRING

1шт.

6

14162074

LOCK PIN,M3 x 22, Slotted

1шт.

7

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
