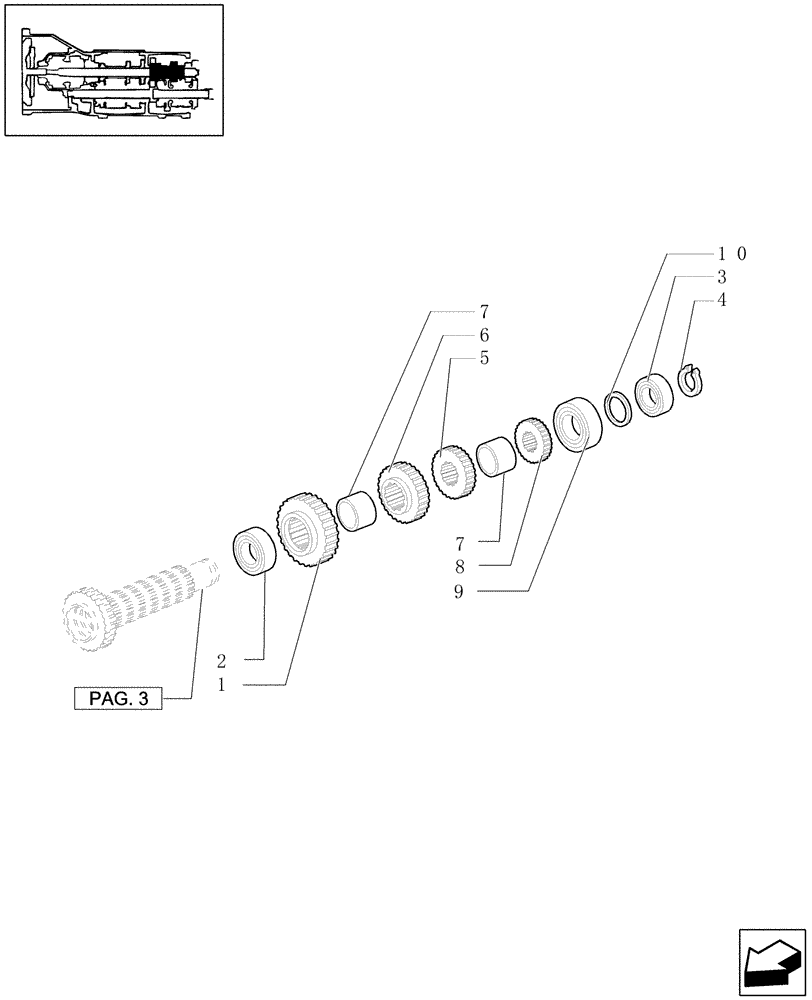

Запчасти Case IH JX1100U (1.28.1[04]) - TRANSMISSION GEARS - GEARS (03) - TRANSMISSION

1

5123982

DRIVING GEAR

4th Speed

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

3

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40 x 80 x 18

1шт.

4

11068876

SNAP RING,M40, Ext

3шт.

5

5179672

DRIVING GEAR

3rd Speed

1шт.

6

5169606

DRIVING GEAR

2nd Speed

1шт.

7

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

8

5118912

DRIVING GEAR

1st Speed

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40 x 90 x 23

1шт.

10

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

10

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

10

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

10

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

10

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.
