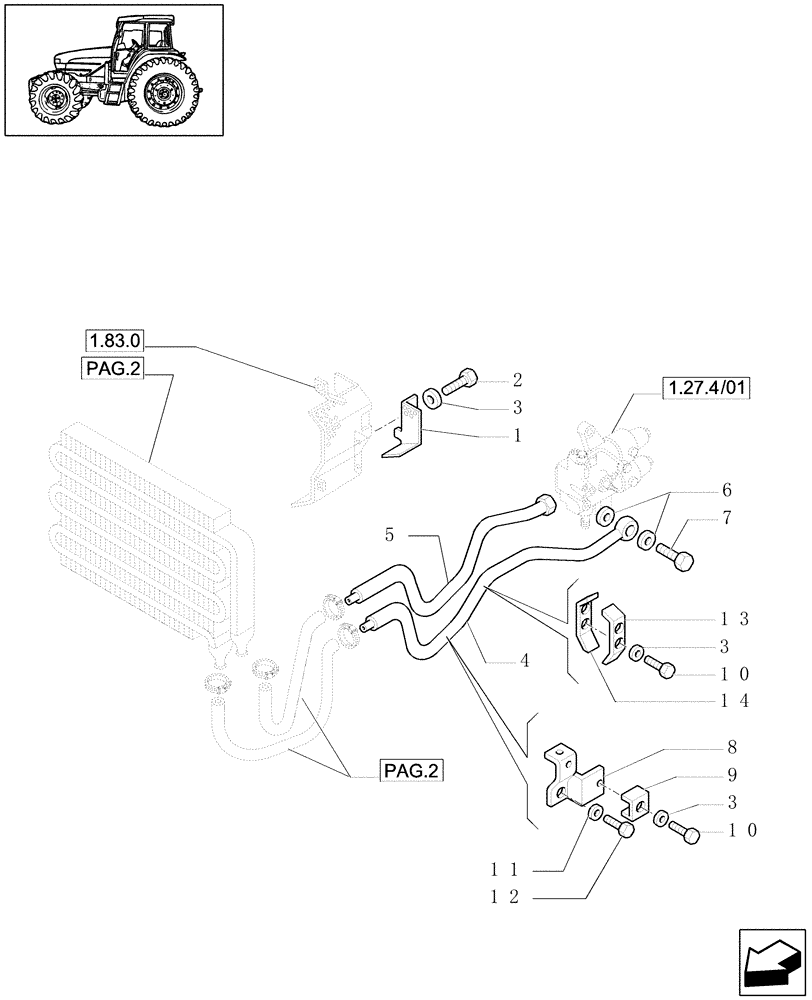

Запчасти Case IH JX1100U (1.27.7/03[01]) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., HEAT EXCHANGER (03) - TRANSMISSION

1

5171382

GRILLE

JX1070U, JX1080U, L/CAB

1шт.

2

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

JX1070U, JX1080U, L/Cab

2шт.

3

10516474

LOCK WASHER

M6

5шт.

4

47134937

TUBE

1шт.

5

47134939

TUBE

1шт.

6

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

2шт.

7

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

1шт.

8

47132747

BRACKET

1шт.

9

5170599

BRACKET

1шт.

10

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

3шт.

11

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

12

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

13

5174104

BRACKET

1шт.

14

5174105

BRACKET

1шт.
