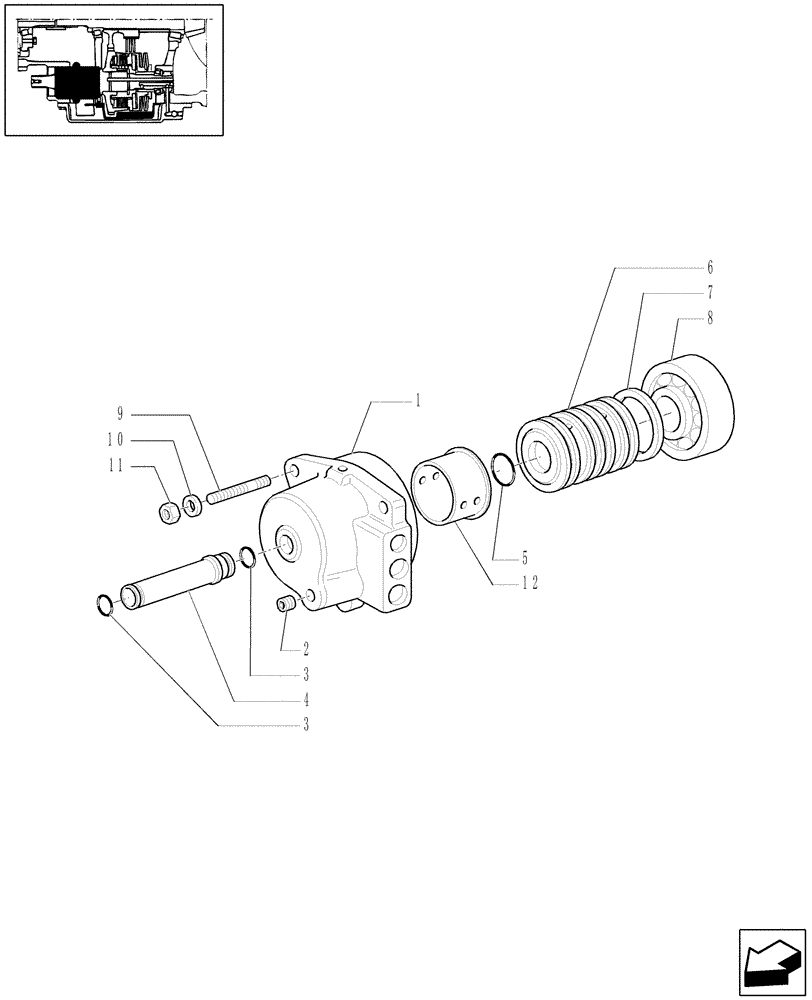

Запчасти Case IH JX1100U (1.27.3/02[02]) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE, HYDRAULIC P.T.O. - MANIFOLD & UNIONS (03) - TRANSMISSION

1

5194897

MANIFOLD

Incl. 12

1шт.

2

14326050

PLUG,Pipe, Hex Skt, M10 x 1.25 x 11mm, Taper Thd, AL

M10 x 1.25

1шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

4

5182025

FITTING

1шт.

5

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

6

5194907

MANIFOLD

1шт.

7

5175988

SEALING RING,55.6mm ID x 60mm OD x 2.42mm Thk

SEALRING 57.58 ID x 2.42mm Thk

4шт.

8

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

1шт.

9

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

3шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

12

5194900

BUSHING,59.98mm ID x 70mm OD x 48.5mm L

1шт.
