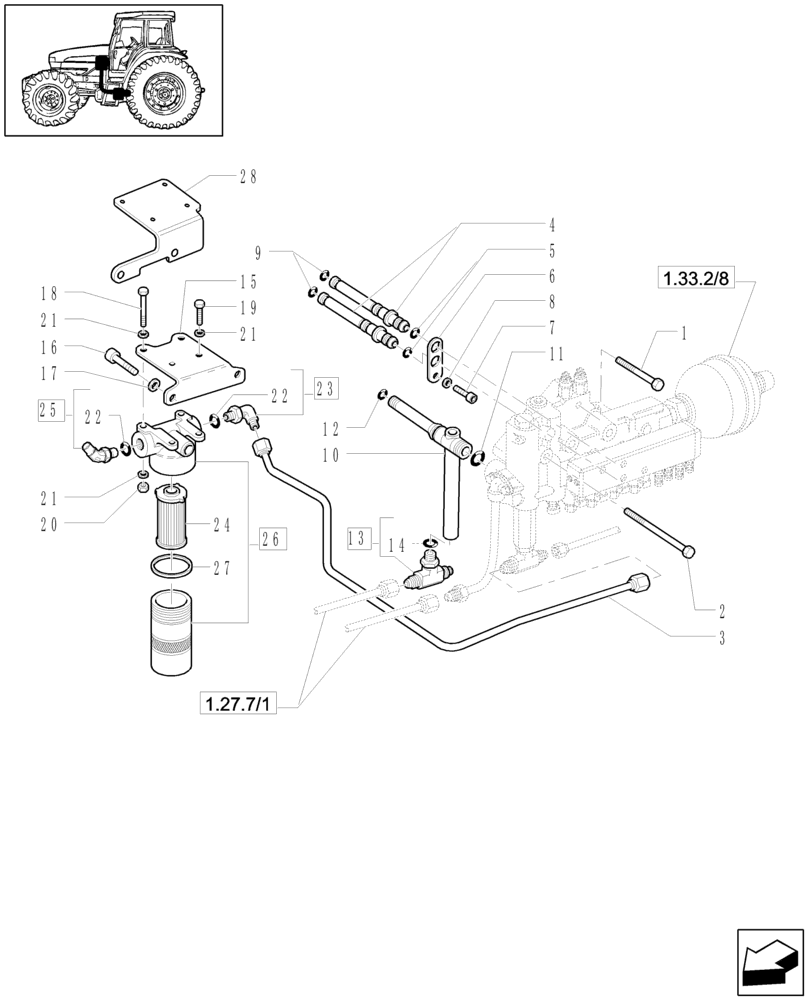

Запчасти Case IH JX1100U (1.27.3/01[03]) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDRAULIC PTO - OIL FILTER & PIPES (03) - TRANSMISSION

1

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

2

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

1шт.

3

5182621

HYD TUBE

, Serial Range: -C5159

1шт.

3

47129807

HYD TUBE

, Start Serial: D5159

1шт.

4

5182049

PIPE

2шт.

5

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2.62X13.1

4шт.

6

5182050

FLANGE

1шт.

7

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

8

10519624

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

9

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

10

87538491

HYD CONNECTOR

1шт.

11

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

12

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

13

5155599

TEE

7/8"-14-M18X1.5

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

15

47129268

BRACKET

, Serial Range: -C5159

1шт.

16

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

18

80120061

BOLT,M8 x 60mm

M8 x 60

2шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

20

16100814

NUT,M8, Cl 8, DAC

4шт.

21

12602474

WAVE WASHER,Wave, M8.3

4шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

23

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

D=22

1шт.

24

47128208

ELEMENT

1шт.

Valid with JX1070U, JX1090U, JX1100U Models

1шт.

25

5167217

HYD CONNECTOR

1шт.

26

47128209

FILTER ASSY

1шт.

27

5194880

O-RING KIT

1шт.

28

47129268

BRACKET

, Serial Range: D5159-C6228

1шт.

28

84152169

BRACKET

, Start Serial: D6228

1шт.
