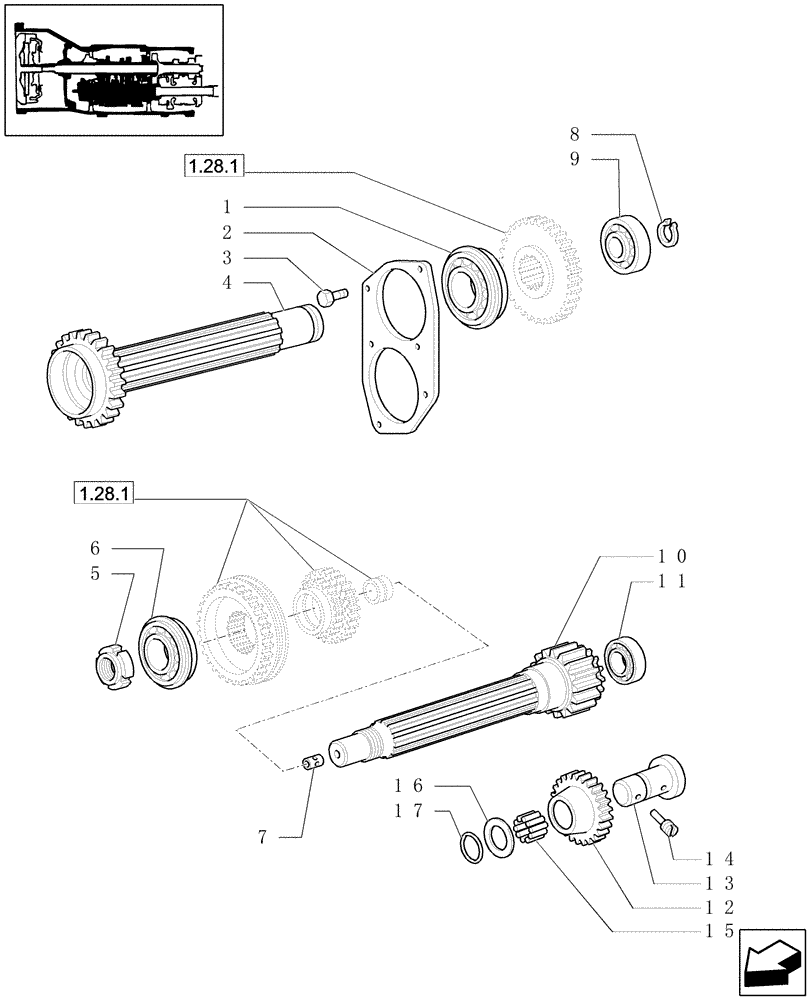

Запчасти Case IH JX1100U (1.27.1/07[03]) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., SHAFTS & BEARINGS (03) - TRANSMISSION

1

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45X85X19, JX1090U, JX1100U

1шт.

2

5137550

COVER

1шт.

3

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

4

5137549

SHAFT

, Serial Range: -C5395

1шт.

4

87324361

SHAFT

, Start Serial: D5395

1шт.

5

5137678

RING NUT

M34X1.5

1шт.

6

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35X80X21, JX1070U, JX1080U

1шт.

7

5145131

RIGID TUBE

1шт.

8

11068876

SNAP RING,M40, Ext

1шт.

9

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

1шт.

10

5125045

SHAFT

JX1070U, JX1080U

1шт.

10

5160028

SHAFT

JX1090U, JX1100U

1шт.

11

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

27.5X52X21

1шт.

12

5137524

IDLER GEAR

1шт.

13

5137525

PIN

1шт.

14

5109695

THREADED ROD

1шт.

15

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

32X28X26

1шт.

16

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

1шт.

17

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.
