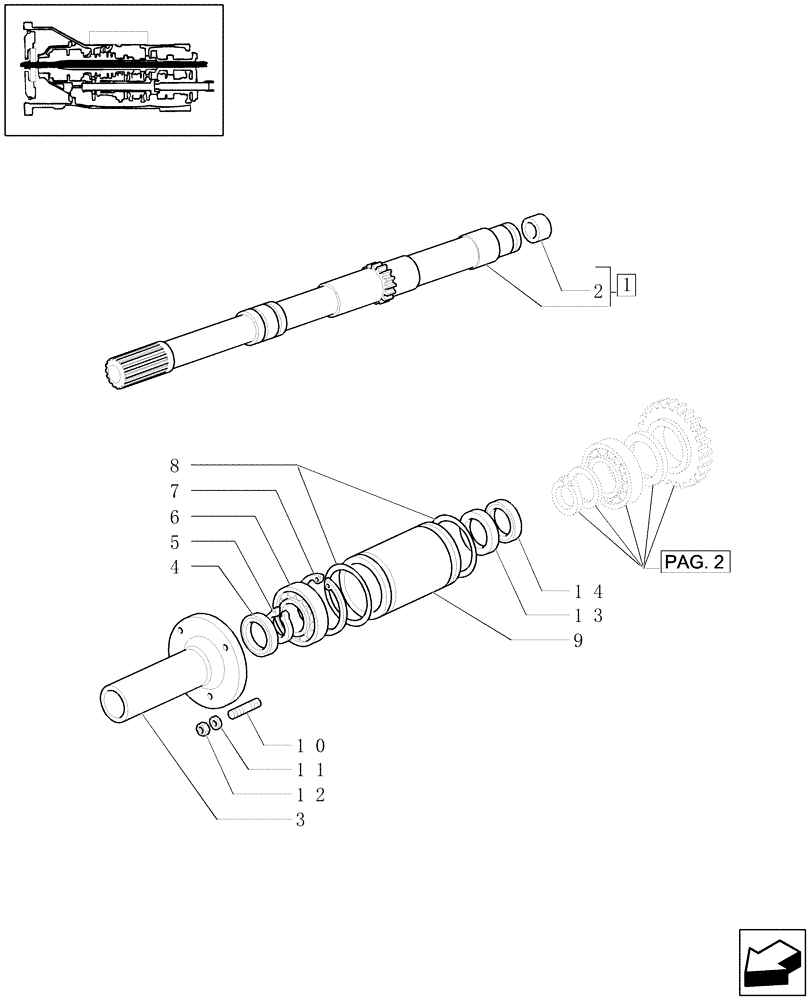

Запчасти Case IH JX1100U (1.27.1/07[01]) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., CLUTCH SHAFT (03) - TRANSMISSION

1

5172782

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25X28.53X18

1шт.

3

5164525

COVER

1шт.

4

5106069

SEAL,49.9mm ID x 68mm OD x 8mm Thk

50X68X8

1шт.

5

11069376

SNAP RING,M50, Ext

1шт.

6

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

5182686

O-RING,2.62mm Thk x 82.22mm ID

2,62X82,22

2шт.

9

5182682

SPACER

1шт.

10

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

M8X1.25X40

3шт.

11

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

5/16"

3шт.

12

16100814

NUT,M8, Cl 8, DAC

3шт.

13

5172774

BUSHING,49.99mm ID x 64mm OD x 12mm L

50X64X12

1шт.

14

5171481

SEAL,64mm ID x 80mm OD x 8mm Thk

64X80X8

1шт.
