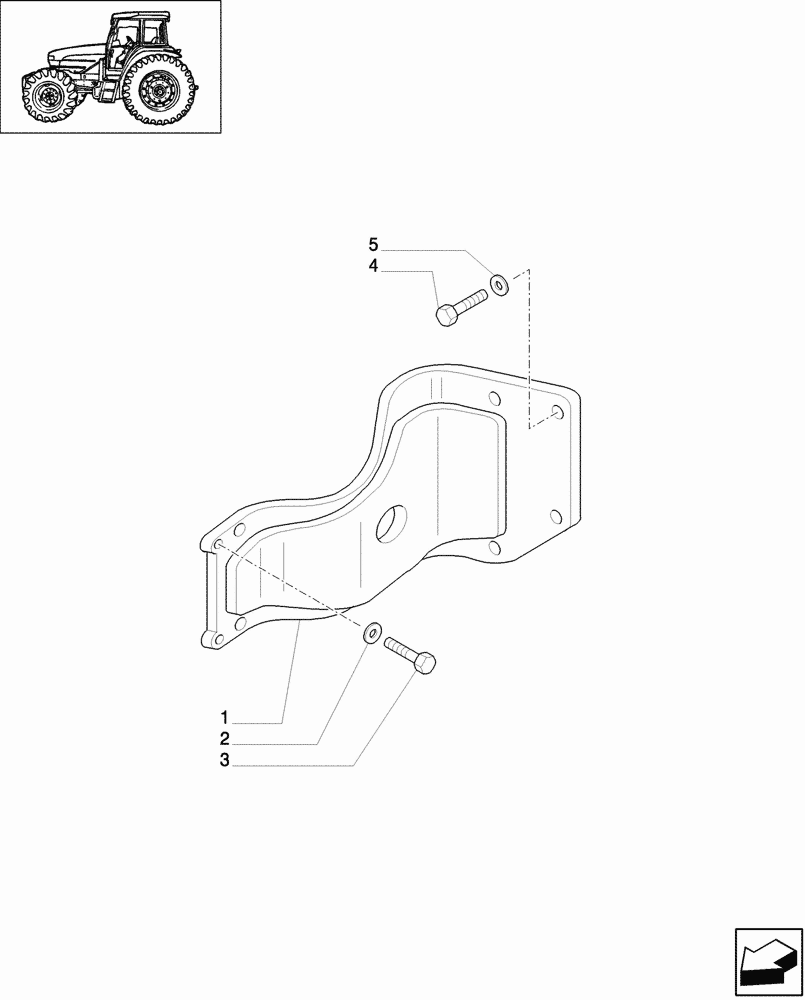

Запчасти Case IH JX1100U (1.21.6/01) - (VAR.489) NA - FITTING FOR LOADER WITH STRENGTHENED TRANSMISSION - BRACKETS (03) - TRANSMISSION

1

87302758

BRACKET

RH

1шт.

1

87302759

BRACKET

LH

1шт.

2

13580124

WASHER,16.4mm ID x 32mm OD x 4mm Thk

4шт.

3

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

2шт.

3

15982537

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

M16 x 90

2шт.

4

11125037

BOLT,Hex, M20 x 65, 10.9, Full Thd

2шт.

4

11125337

BOLT,Hex, M20 x 80mm, Cl 10.9

2шт.

5

14497121

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.
