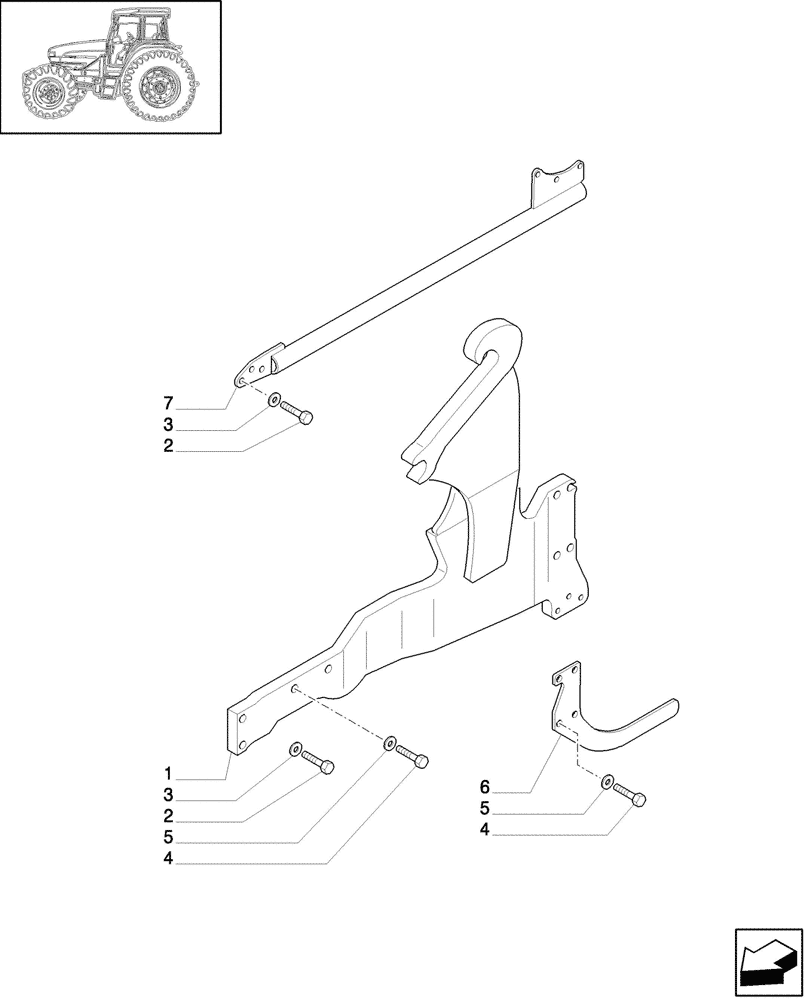

Запчасти Case IH JX1100U (1.21.6) - (VAR.075-076) FITTING FOR LOADER - BRACKETS (03) - TRANSMISSION

1

47137146

BRACKET

RH

1шт.

1

47137147

BRACKET

LH

1шт.

2

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

8шт.

2

15981537

BOLT,Hex, M16 x 1.5 x 90mm, Cl 10.9

2шт.

2

11125121

BOLT,Hex, M20 x 70, 8.8

2шт.

2

11118934

BOLT,Hex, M16 x 50mm, Cl 10.9

M16x50

6шт.

3

13580124

WASHER,16.4mm ID x 32mm OD x 4mm Thk

12шт.

4

15224321

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8, Full Thd

6шт.

4

11124824

SCREW

M20 x 55

8шт.

5

10520424

WASHER

20x35

16шт.

6

47137148

SHIELD

2шт.

7

47137150

REINFORCEMENT

RH, VAR.076

1шт.

FOR JX1080U, JX1090U, JX1100U (4WD, W/CAB) ONLY

1шт.

7

47137151

REINFORCEMENT

LH, VAR.076

1шт.

FOR JX1080U, JX1090U, JX1100U (4WD, W/CAB) ONLY

1шт.
