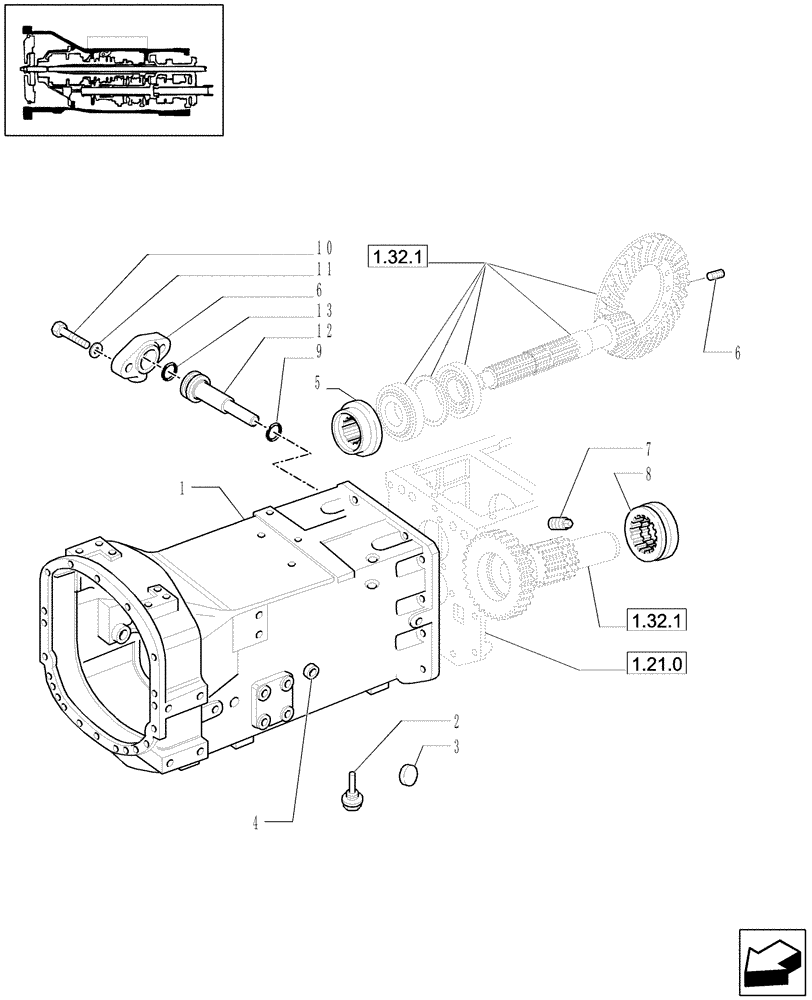

Запчасти Case IH JX1100U (1.21.0/05) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., CLUTCH BOX (03) - TRANSMISSION

1

5182308

HOUSING

, Serial Range: -C4983

1шт.

1

47132243

HOUSING

, Start Serial: D4983

1шт.

2

5118991

PLUG,M22 x 1.5

1шт.

3

5171614

PLUG,27mm OD

D=27, JX1090U, JX1100U

2шт.

4

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

2шт.

5

5128016

SPACER,10T

JX1070U, JX1080U

1шт.

6

5189378

PLUG,M10 x 1.5 x 12mm, Cl 4.8

M10X1,5

1шт.

6

47132241

FLANGE

, Start Serial: D4983

1шт.

7

14323914

PLUG,M10 x 1.25 x 14mm L

JX1070U, JX1080U

1шт.

8

5125880

SPLINED COUPLING,17T

JX1070U, JX1080U

1шт.

9

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

12

47132240

PISTON

, Start Serial: D4983

1шт.

13

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

, Start Serial: D4983

1шт.
