(1.15.1[06]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS

Запчасти Case IH JX1100U (1.15.1[06]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS (02) - ENGINE EQUIPMENT

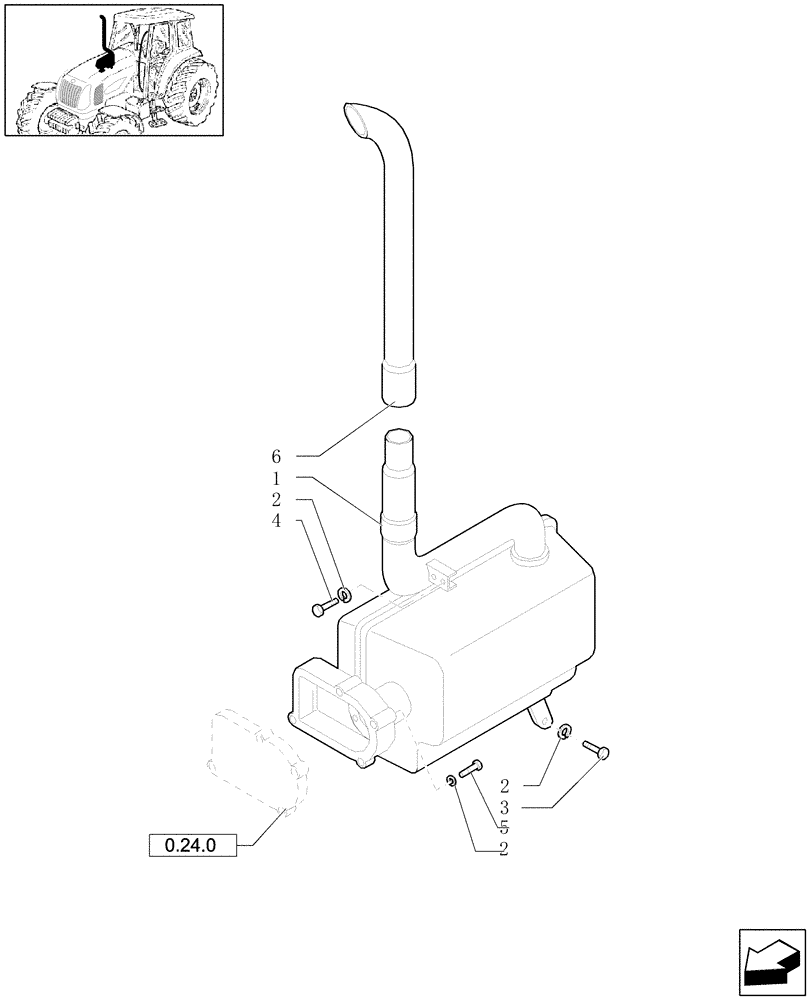

Схема запчастей Case IH JX1100U - (1.15.1[06]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS (02) - ENGINE EQUIPMENT
2
6
4
2
5
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125664

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

7шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

5

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

4шт.

6

5173644

EXHAUST SYSTEM PIPE

1шт.
