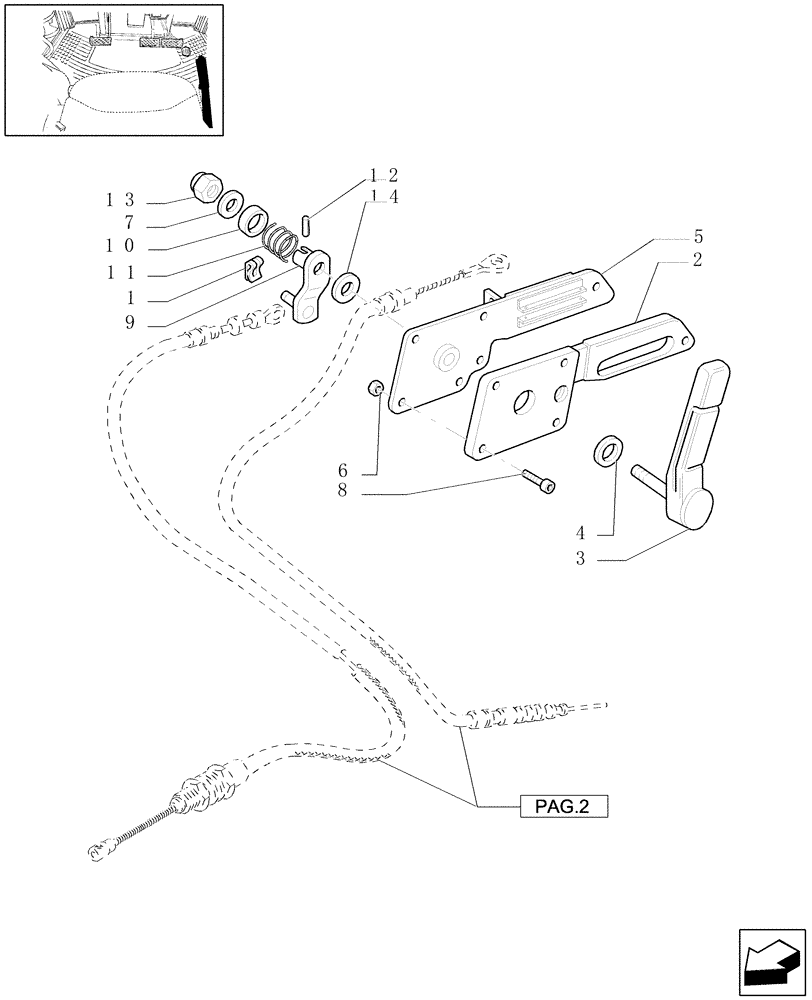

Запчасти Case IH JX1090U (1.10.0[03]) - THROTTLE CONTROL LINKAGE - (L/ CAB) - LEVER SUPPORTS, LEVER (02) - ENGINE EQUIPMENT

1

11063876

SPRING CLIP,M5 x 4mm

2шт.

2

5140157

COVER

1шт.

3

5169712

LEVER

1шт.

4

5153009

WASHER,14.5mm ID x 35mm OD x 2mm Thk

2шт.

5

5199219

SUPPORT

1шт.

6

14197894

NUT,M5 x .8, Cage

to /

5шт.

7

5133910

WASHER,14.5mm ID x 48mm OD x 3mm Thk

to /

1шт.

8

14304627

HEX SOC SCREW,M5 x 14mm, Cl 8.8, Full Thd

to /

5шт.

9

5129632

LEVER

1шт.

10

5133911

BUSHING,31.5mm ID x 35mm OD x 15mm L

31.5x35x15

1шт.

11

5105248

SPRING

1шт.

12

82012892

PIN,9mm OD x 18mm L

1шт.

13

12574815

LOCK NUT,M14 x 1.5, Cl 8

1шт.
