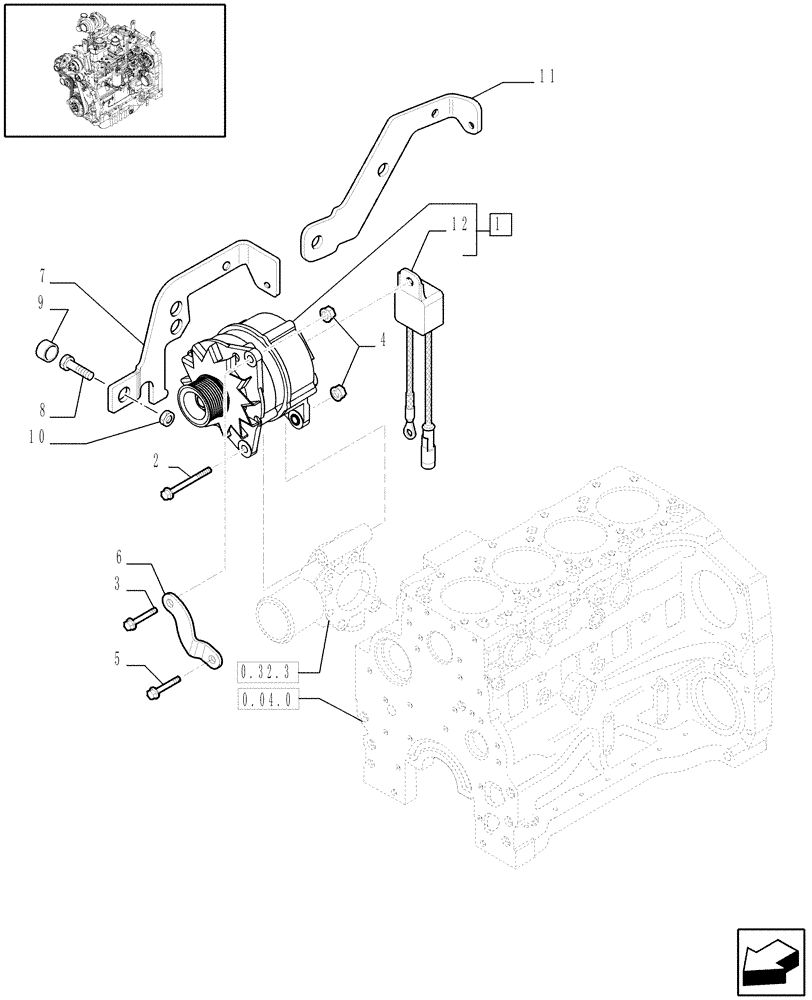

Запчасти Case IH JX1090U (0.40.0[02]) - ALTERNATOR - L/CAB (01) - ENGINE

1

47129299

ALTERNATOR

120A, Serial Range: -C5190

1шт.

1

47129299R

REMAN-ALTERNATOR

JX1080U, JX1090U, JX1100U

1шт.

1

47129299C

CORE-ALTERNATOR

Return Number

1шт.

1

87311827

ALTERNATOR

55A, Start Serial: D5190

1шт.

1

87311822R

REMAN-ALTERNATOR

Reman for New PN 87311827

1шт.

1

87311822C

CORE-ALTERNATOR

Return Number

1шт.

1

87311822

ALTERNATOR,120A, W/ Pulley

120A, ASSY, Start Serial: D5190

1шт.

1

87311822R

REMAN-ALTERNATOR

Reman for New PN 87311822

1шт.

1

87311822C

CORE-ALTERNATOR

Return Number

1шт.

2

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

1шт.

3

2852235

SCREW

M10X35

1шт.

4

2852236

FLANGE NUT,M10 x 1.5

2шт.

5

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

M10X20

1шт.

6

2853673

BRACKET

1шт.

7

87313519

BRACKET

, Serial Range: D5190-C5244

1шт.

8

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

, Serial Range: -HJT090303

1шт.

8

11106124

BOLT,Hex, M10 x 22mm, Cl 8.8

M10x22, Start Serial: HJT090304

1шт.

9

5163670

CAP

, Serial Range: -HJT090303

1шт.

10

11701721

NUT,M10, Cl 10

1шт.

11

87326064

BRACKET

, Start Serial: D5244

1шт.

12

87537543

CABLE

1шт.
