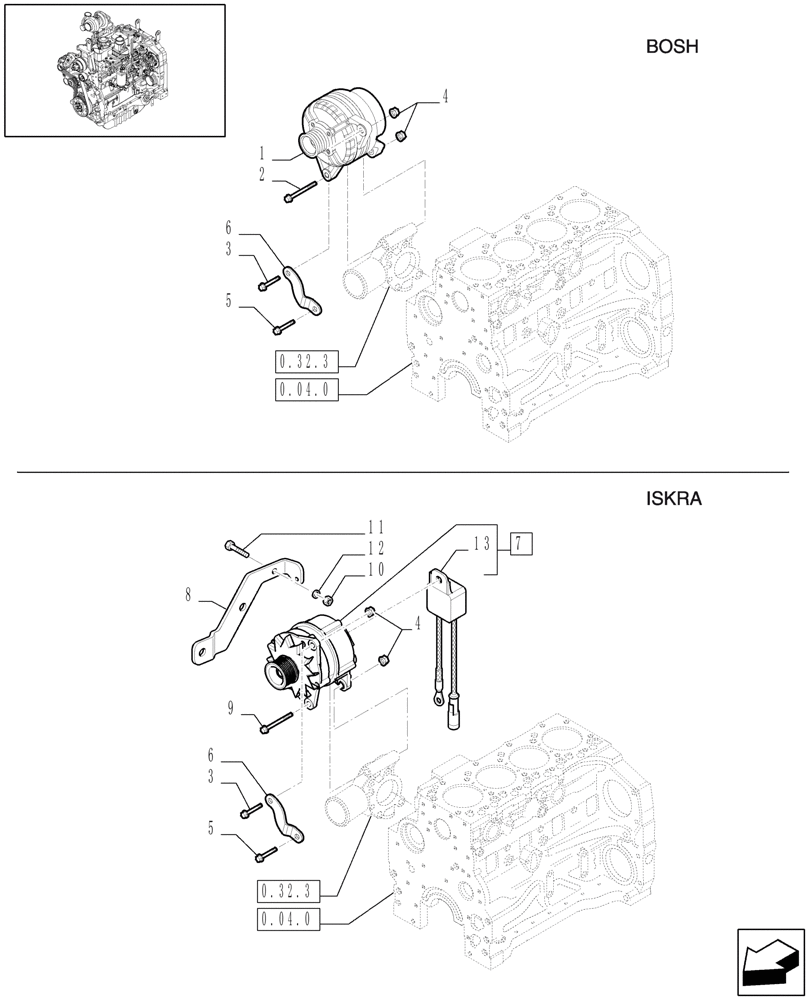

Запчасти Case IH JX1090U (0.40.0[01]) - ALTERNATOR - W/CAB (01) - ENGINE

1

47129299

ALTERNATOR

BOSCH

1шт.

1

47129299R

REMAN-ALTERNATOR

JX1080U, JX1090U, JX1100U

1шт.

1

47129299C

CORE-ALTERNATOR

Return Number

1шт.

2

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

1шт.

3

2852235

SCREW

M10X35

1шт.

4

2852236

FLANGE NUT,M10 x 1.5

2шт.

5

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

M10X20

1шт.

6

2853673

BRACKET

1шт.

7

87311822

ALTERNATOR,120A, W/ Pulley

ASSY

1шт.

7

87311822R

REMAN-ALTERNATOR

Reman for New PN 87311822

1шт.

7

87311822C

CORE-ALTERNATOR

Return Number

1шт.

8

87326064

BRACKET

1шт.

9

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

11

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

1шт.

12

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

1шт.

13

87537543

CABLE

1шт.
