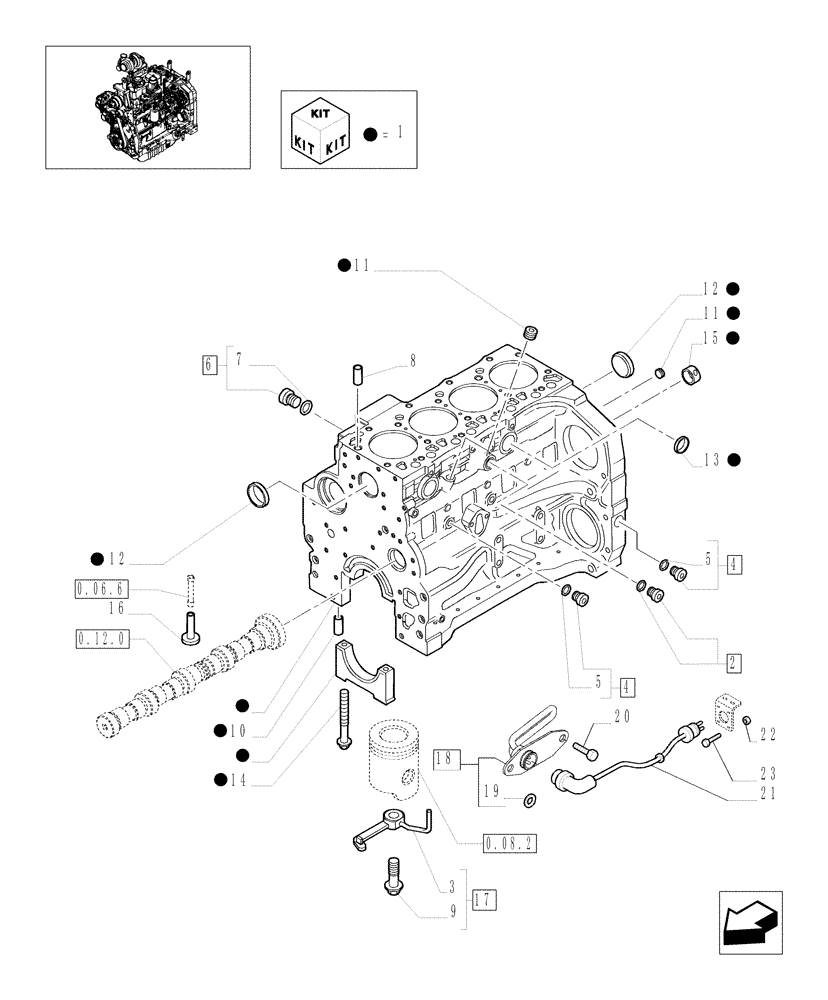

Запчасти Case IH JX1090U (0.04.0/01) - CRANKCASE (01) - ENGINE

1

2830777

CYLINDER BLOCK

ASSY

1шт.

2

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.

3

87803018

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

4

4899009

PLUG,M10 x1

2шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy

2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

4894218

SCREW,Special, M8 x 20

1шт.

10

4899026

DOWEL,M18 x 10

10шт.

11

4895039

EXPANSION PLUG,M17.73

3шт.

12

4895038

EXPANSION PLUG,M58.06

4шт.

13

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

14

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

15

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

1шт.

16

J931623

TAPPET

8шт.

17

87803018

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE ASSY

4шт.

18

8602005

HEATER,750W, 120V

VAR.216/1

1шт.

19

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

VAR.216/1

1шт.

20

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

Var. 216/1

2шт.

21

82030481

ELECTRIC CABLE

VAR.216/1

1шт.

22

12575411

LOCK NUT,M6 x 1, Cl 8

VAR.216/1

2шт.

23

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

VAR.216/1

2шт.
