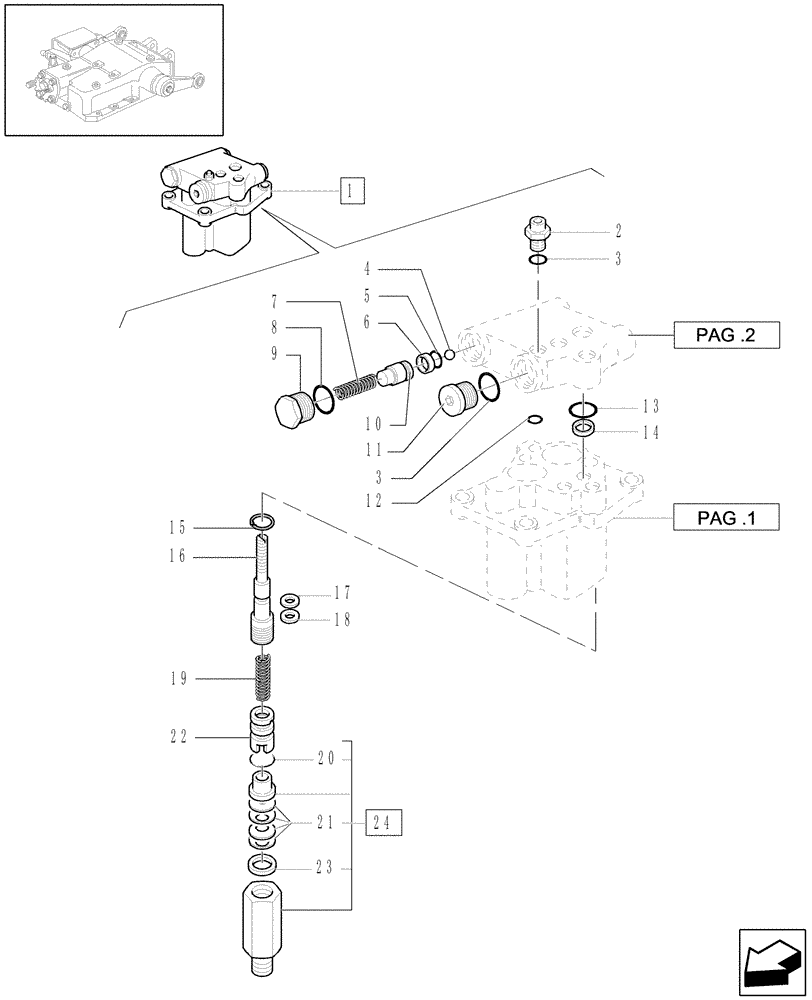

Запчасти Case IH JX1090U (1.82.4[03]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM

1

5180934

CONTROL VALVE

, Serial Range: -C4975

1шт.

1

47135711

CONTROL VALVE

, Start Serial: D4975

1шт.

2

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

1шт.

2

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

20063460

BALL,7.14mm OD, Gr 100

DIA=7.144

1шт.

5

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

6

5155831

GUIDE RING,9.2mm ID x 16mm OD x 3.3mm L

1шт.

7

4999311

SPRING

1шт.

8

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

9

5155828

PLUG,M20 x 1.5

M20 x 1.5

1шт.

10

5155830

PISTON

1шт.

11

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

12

14452680

O-RING,0.208" ID x 0.07" Width

1шт.

13

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

14

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

15

13397476

SNAP RING,M10.8, Int

1шт.

16

5155832

PIN,16mm OD x 81mm L

1шт.

17

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

18

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

M6.75 ID x 1.78 Thk

1шт.

19

5155844

SPRING,Compression, 11mm OD x 34mm L

1шт.

20

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

21

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

1шт.

22

5178017

SPOOL,16.5mm OD x 30.5mm L

, Serial Range: -C4975

1шт.

22

5163620

SPOOL

, Start Serial: D4975

1шт.

23

4951123

SPRING WASHER,10.1mm ID x 20.4mm OD x 3mm Thk

1шт.

24

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.
