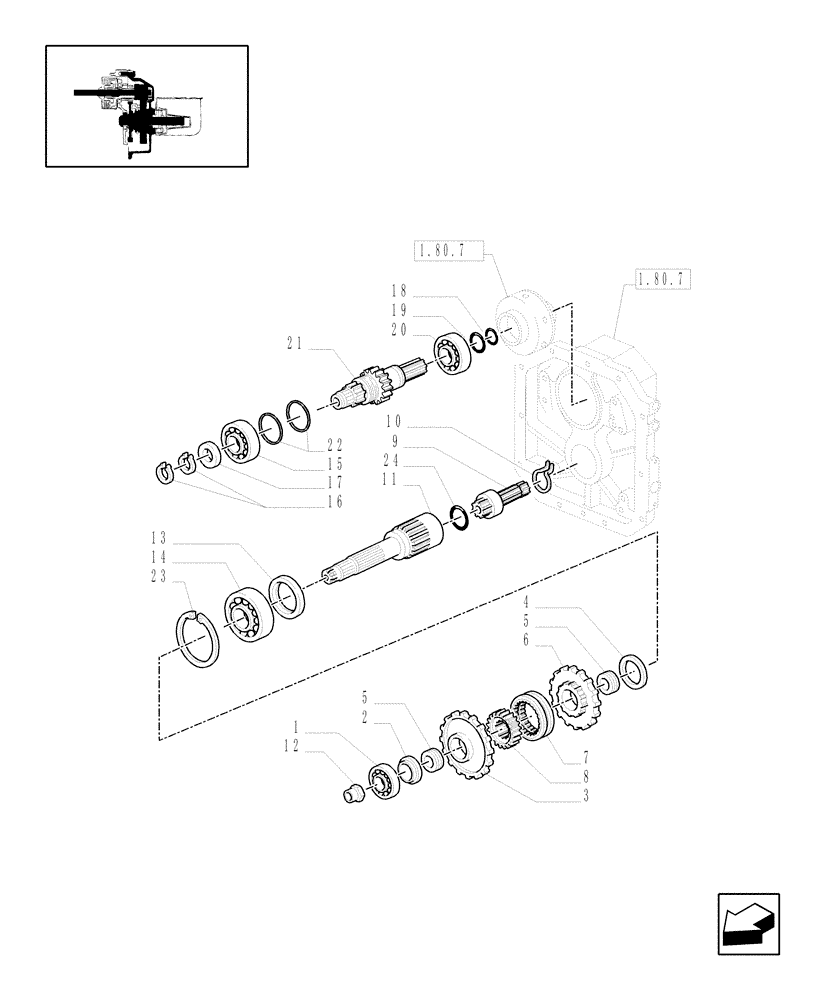

Запчасти Case IH JX1090U (1.80.1/06[01]) - (VAR.728) SYNCHRO MESH GEARED POWER TAKE-OFF 540 - 1000 RPM (NA) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

Roller/Taper, 35 x 80 x 21

1шт.

2

5162811

THRUST WASHER,35.1mm ID x 62mm OD x 6.5mm Thk

2шт.

3

5109733

DRIVEN GEAR

540 RPM, JX1070U, JX1080U, JX1090U

1шт.

3

5170028

DRIVEN GEAR

540 RPM, JX1100U

1шт.

4

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

5

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

6

5109736

DRIVEN GEAR

1000 RPM, JX1070U, JX1080U, JX1090U

1шт.

6

5170030

DRIVEN GEAR

1000 RPM, JX1100U

1шт.

7

5145798

SYNCHRONIZER,24T

1шт.

8

5171264

GEAR,14T Internal / 24T External

1шт.

9

47133081

PTO SHAFT

540 RPM

1шт.

9

47133076

PTO SHAFT,162mm L

1000 RPM

1шт.

10

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

11

5198353

SHAFT

1шт.

12

5122985

NUT,Ring, M32, 1.5 Pitch

M32 x 1.5

1шт.

13

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

60 x 80 x 10

1шт.

14

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

15

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

45 x 100 x 25

1шт.

16

11068876

SNAP RING,M40, Ext

2шт.

17

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

40.3 x 62 x 5

1шт.

18

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

19

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

20

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

55 x 100 x 21

1шт.

21

5174260

MAIN SHAFT

1шт.

22

5175996

RETAINER

60.7 x 65 x 2.32

1шт.

23

11062476

SNAP RING,M90, Int

1шт.

24

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.
