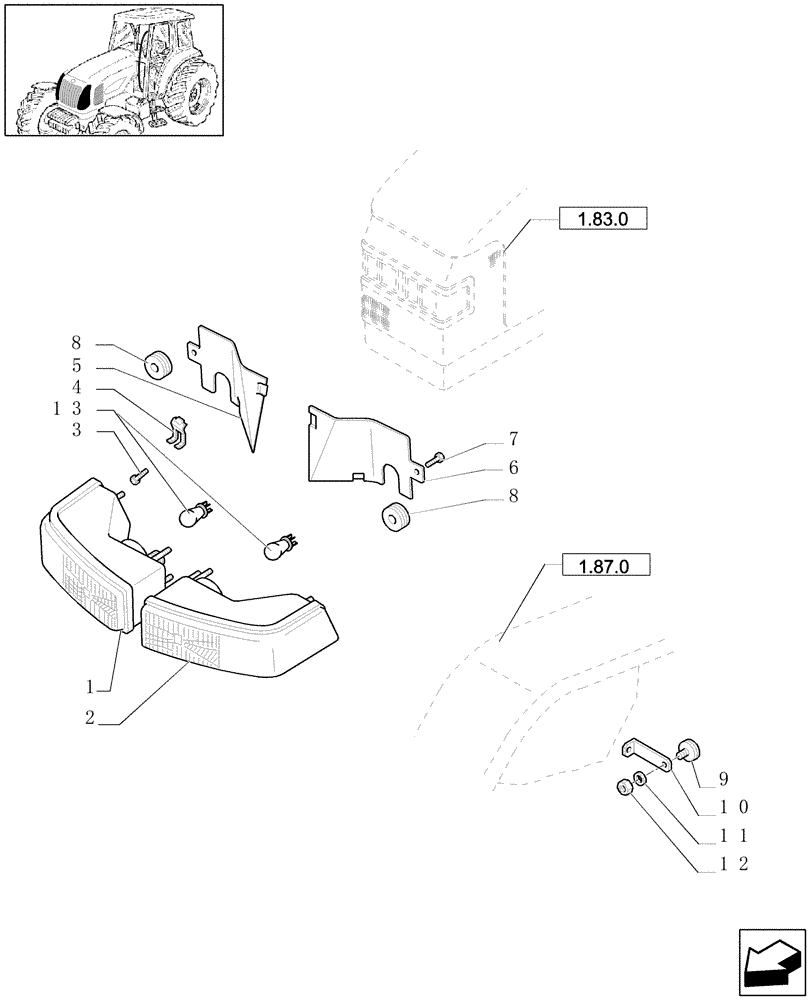

Запчасти Case IH JX1090U (1.75.6[01]) - LIGHTING COMPONENTS (06) - ELECTRICAL SYSTEMS

1

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

Right RH Dip, Incl. 13

1шт.

1

232453A2

HEADLIGHT

LH (VAR. 007), Includes Ref. 13

1шт.

2

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

Left RH Dip, Incl. Ref. 13

1шт.

2

232452A2

HEADLIGHT

RH (VAR. 007), Includes Ref. 13

1шт.

3

10559907

SELF-TAP SCREW,Hex Flg, M6.3 x 19mm

6шт.

4

44995046

CLIP

6шт.

5

47127434

PLATE

RH

1шт.

6

47127433

BRACKET

LH

1шт.

7

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

2шт.

8

47127368

GROMMET

2шт.

9

5171358

REFLECTOR

2шт.

10

5180669

SUPPORT

2шт.

11

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

12

15896414

NUT,M5, Cl 8

2шт.

13

323093A1

BULB

50W

2шт.

13

87283179

BULB,H4, 12V, 60/55W

60/65W

2шт.
