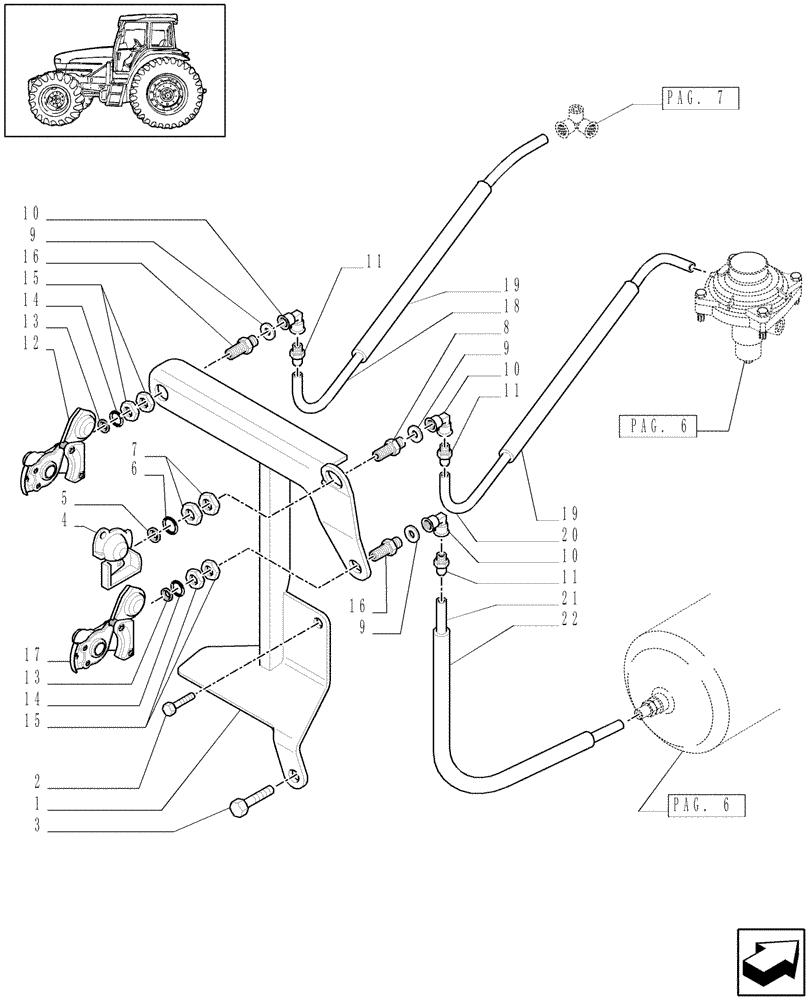

Запчасти Case IH JX1090U (1.68.6[08]) - (VAR.385) TRAILER AIR BRAKE GERMANY / AUSTRIA - AIR BRAKE BRACKET AND RELEVANT PARTS (05) - REAR AXLE

1

87331907

BRACKET

1шт.

2

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

3

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

1шт.

4

87340509

QUICK MALE COUPLING

Black

1шт.

5

87343416

RING

1шт.

6

87343417

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2,4x20,3

1шт.

7

10726821

NUT,Thin, M22 x 1.5, Cl 05

M22x1,5

2шт.

8

87346080

FITTING

1шт.

9

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

3шт.

10

87346513

ELBOW

M16x1,5

3шт.

11

87343650

UNION,Straight, M16 x 1.5, 12mm Push-In Coupling

3шт.

12

87340483

QUICK MALE COUPLING,Red

Red

1шт.

13

87346554

SEALING WASHER

2шт.

14

87346568

O-RING,2.5mm Thk x 14mm ID, 70 Duro

2,5x14

2шт.

15

16103921

NUT

M16x1,5

4шт.

16

87346697

FITTING

2шт.

17

87340491

QUICK MALE COUPLING,Yellow

Yellow

1шт.

18

87306530

FLEXIBLE HOSE

12x1300mm

1шт.

19

87350285

HOSE PROTECTION,15.00 mm ID x 800.00 mm

2шт.

20

87306529

FLEXIBLE HOSE

12x1100mm

1шт.

21

87306528

FLEXIBLE HOSE

12x1050mm

1шт.

22

87350281

HOSE PROTECTION,15.00 mm ID x 600.00 mm

1шт.
