Запчасти Case IH JX1090U (1.68.5/07[02]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - BRACKETS, PIPES (05) - REAR AXLE

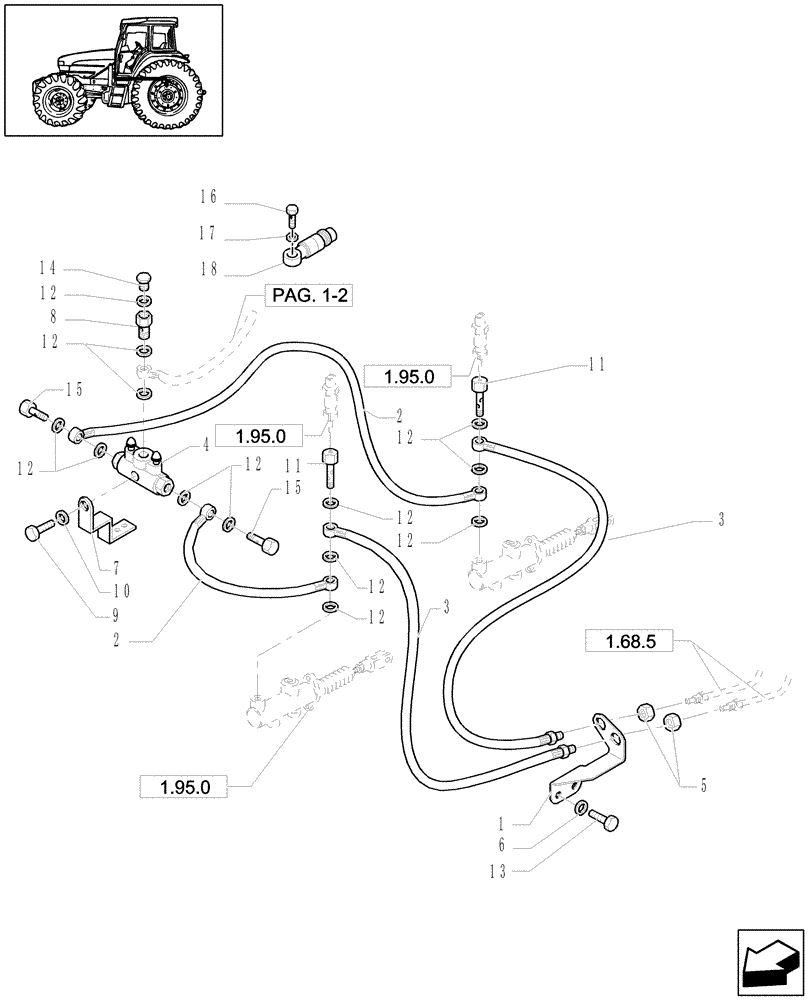

Схема запчастей Case IH JX1090U - (1.68.5/07[02]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - BRACKETS, PIPES (05) - REAR AXLE
14
12
13
10
3
15
3
15
8
12
11
2
2
12
6
1
17
18
12
7
12
11
12
9
5
12
16
12
4
12

Артикул

Название

Примечание

Количество

1

47132546

BRACKET

1шт.

2

47132429

FLEXIBLE HOSE

2шт.

3

5155700

HOSE,4.75mm ID x 315.00mm

, Serial Range: -C4949

2шт.

3

47136663

HOSE,4.75mm ID x 345mm L

, Start Serial: D4949

2шт.

4

5143506

MASTER CYLINDER

Synchronizing

1шт.

5

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

47132430

SUPPORT

1шт.

8

5185683

HYD CONNECTOR

, Serial Range: -C5314

1шт.

9

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

10

10516674

LOCK WASHER,M8

1шт.

11

47132432

HYD CONNECTOR

2шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

13шт.

13

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

, Serial Range: -C5314

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

2шт.

16

87392054

HYD CONNECTOR,M12 x 1 x 42.5mm L

, Start Serial: D5314

1шт.

17

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

, Start Serial: D5314

1шт.

18

82030175

BANJO FITTING,M8 x 1 x 53mm

, Start Serial: D5314

1шт.

Выбрано товаров: 19
