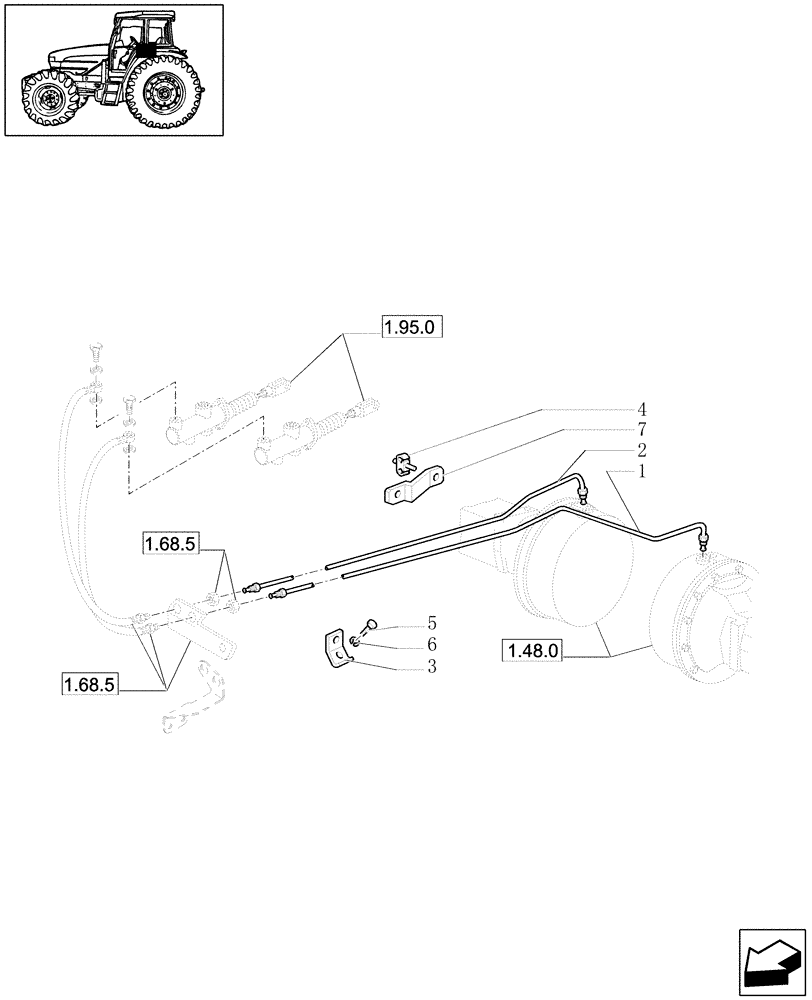

Запчасти Case IH JX1090U (1.68.5/02) - (VAR.007) NA ONLY - BRAKE PIPES (05) - REAR AXLE

1

47132547

BRAKE LINE

LH, 2WD

1шт.

2

47132549

TUBE

RH, 2WD

1шт.

3

47132597

BRACKET

1шт.

4

14575380

CLIP,4.8mm ID

2WD

4шт.

5

15540024

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

6

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

7

5169636

BRACKET

2WD

1шт.
