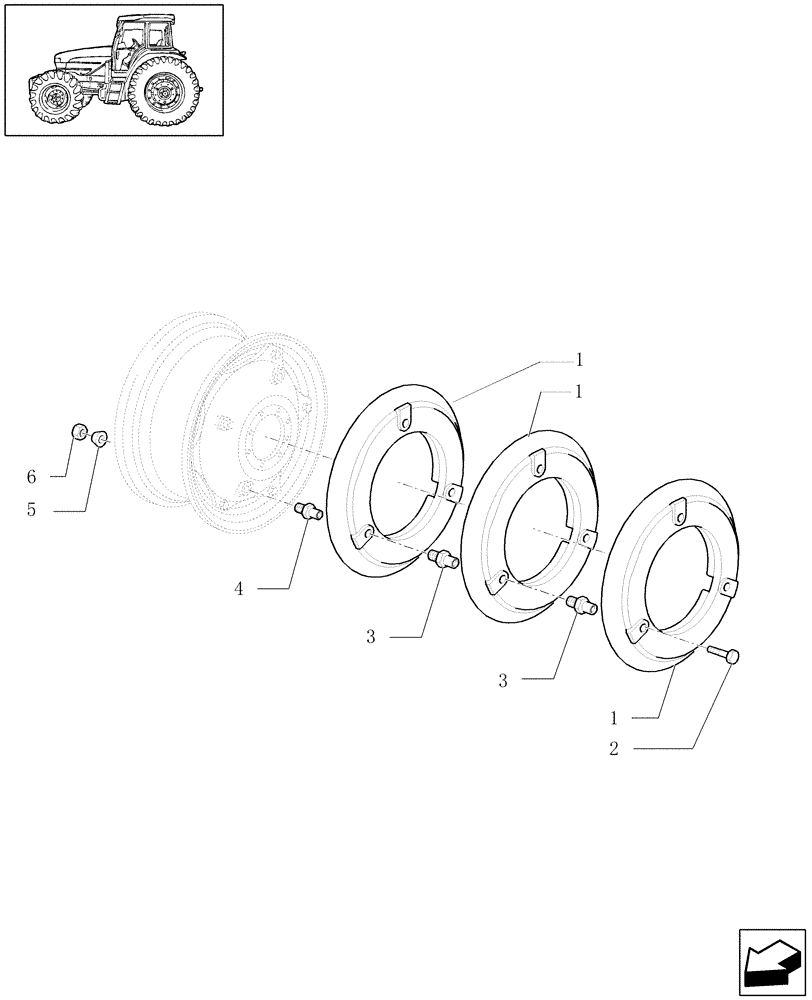

Запчасти Case IH JX1090U (1.48.2[01]) - (VAR. 470-471) REAR BALLAST (05) - REAR AXLE

1

47131052

WHEEL WEIGHT,50Kg/110Lb

KG 50/LB 110 (VAR. 470)

4шт.

3 bolts on circle =410mm.

1шт.

1

47131052

WHEEL WEIGHT,50Kg/110Lb

KG 50/LB 110 (VAR. 471)

6шт.

3 bolts on circle =410mm.

1шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16x78 (VAR. 470)

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

(VAR. 471)

12шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16x60

6шт.

5

12164124

NUT,M16 x 1.5, Cl 8

6шт.

6

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
