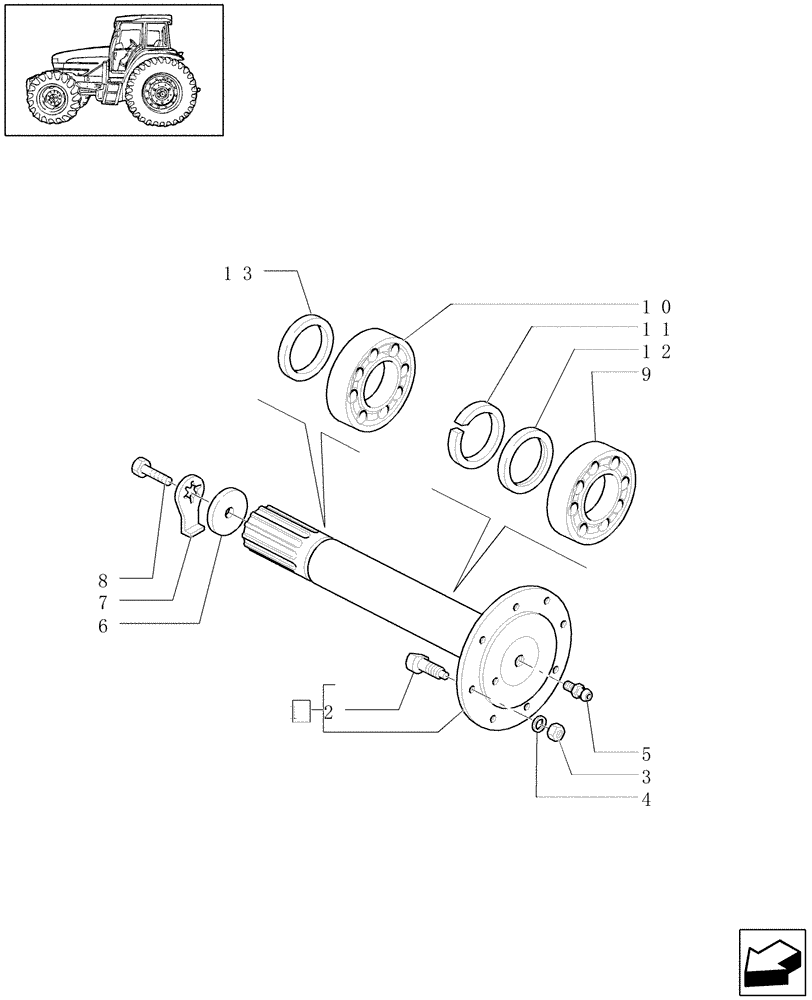

Запчасти Case IH JX1090U (1.48.1/04[02]) - ((VAR.406) FRONT AXLE,40KM/H HYDR. DIFF. LOCK.- STEP-DOWN GEARING (05) - REAR AXLE

1

5170097

AXLE

2шт.

2

44011089

WHEEL BOLT

M18x56

16шт.

3

12164221

NUT,M18 x 1.5, Cl 10

16шт.

4

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

D=18

16шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

6

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

7

5157668

PLATE

2шт.

8

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

9

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

2шт.

10

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

75x130x25

2шт.

11

5123054

SPACER,127mm ID x 131mm OD x 6.5mm L

65x120x23

2шт.

12

5123205

SEAL,100mm ID x 130mm OD x 16mm Thk

100 x 130 x 16

2шт.

13

4996966

SHIM,4.5mm Thk

1шт.

13

4996967

SHIM,4.6mm Thk

1шт.

13

4996968

SHIM,4.7mm Thk

1шт.

13

4996969

SHIM,4.8mm Thk

1шт.

13

4996970

SHIM,4.9mm Thk

1шт.

13

4996971

SHIM,5.0mm Thk

1шт.

13

4996972

SHIM,5.1mm Thk

1шт.

13

4996973

SHIM,5.2mm Thk

1шт.

13

4996974

SHIM,5.3mm Thk

1шт.

13

4996975

SHIM,5.4mm Thk

1шт.

13

4996976

SHIM,5.5mm Thk

1шт.

13

4996977

SHIM,5.6mm Thk

1шт.

13

4996978

SHIM,5.7mm Thk

1шт.

13

4996979

SHIM,5.8mm Thk

1шт.
