Запчасти Case IH JX1090U (1.48.1/01) - (VAR.449) PADDY FIELD VERSION - SIDE REDUCTION GEAR BOX, SHAFT (05) - REAR AXLE

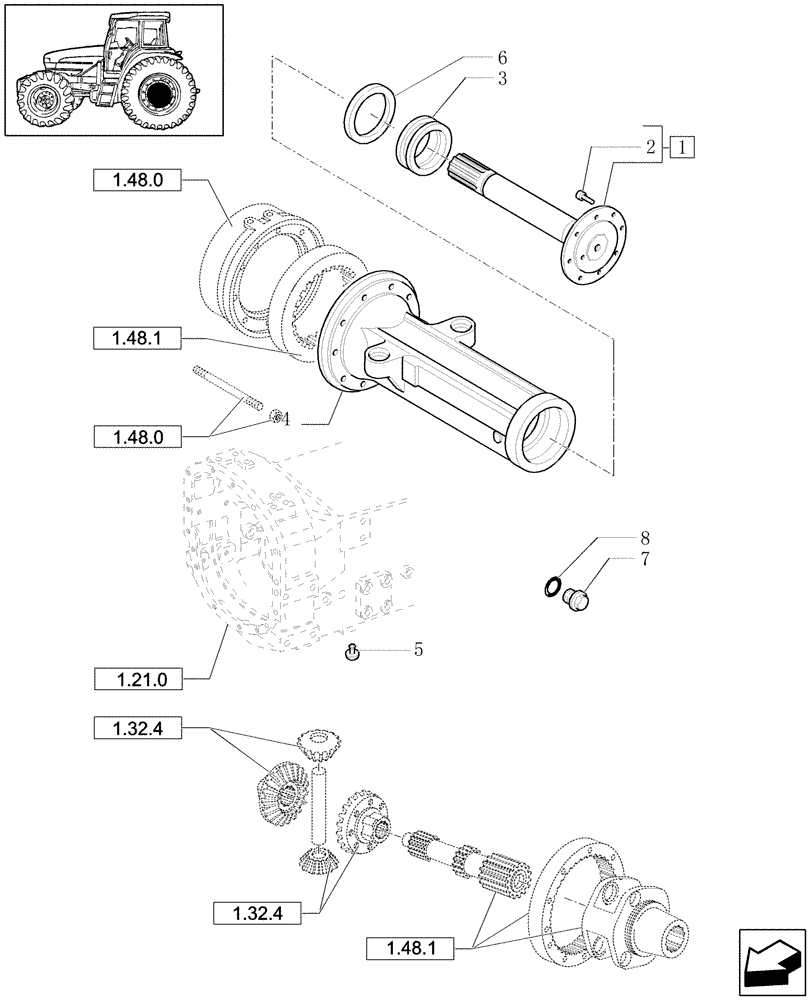

Схема запчастей Case IH JX1090U - (1.48.1/01) - (VAR.449) PADDY FIELD VERSION - SIDE REDUCTION GEAR BOX, SHAFT (05) - REAR AXLE
6
7
1
2
5
3
4
8

Артикул

Название

Примечание

Количество

1

5170162

AXLE

JX1070U

2шт.

1

5170184

AXLE

JX1100U

2шт.

1

5176067

AXLE

JX1080U, JX1090U

2шт.

2

44011089

WHEEL BOLT

M18 x 56

16шт.

3

5144973

SEAL,104mm ID x 135mm OD x 28mm Thk

104 x 135 x 28

2шт.

4

5170145

AXLE HOUSING

JX1080U, JX1090U

2шт.

4

5170160

AXLE HOUSING

JX1070U

2шт.

4

5170183

AXLE HOUSING

JX1100U

2шт.

5

5145574

PLUG,M7 X 12.5mm

D = 7

1шт.

6

5144972

RING,114mm ID x 134.5mm OD x 2.5mm Thk

JX1070U, JX1080U, JX1090U

2шт.

7

5198705

PLUG

M20x2.5

1шт.

8

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

4шт.

Выбрано товаров: 12
