Запчасти Case IH JX1090U (1.40. 7/08[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - BRAKE PARTS (04) - FRONT AXLE & STEERING

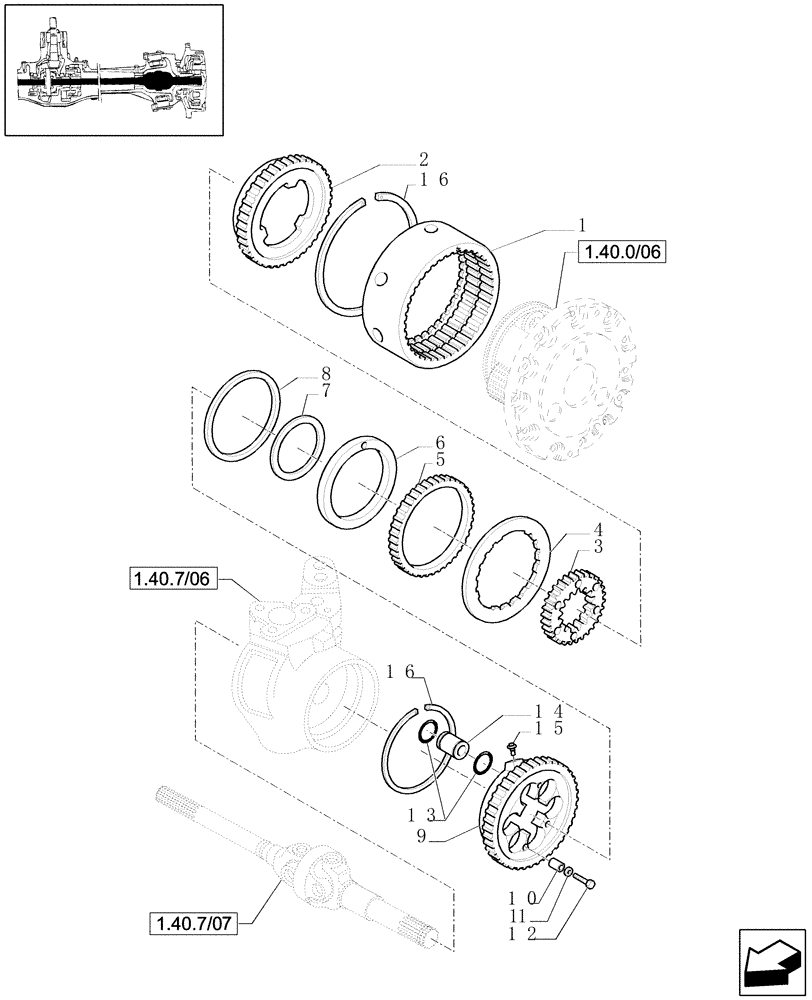

Схема запчастей Case IH JX1090U - (1.40. 7/08[02]) - (VAR.327/1) ELECTROHYD. FRONT DIFFENTIAL LOCK, BRAKES AND MUDGUARDS - BRAKE PARTS (04) - FRONT AXLE & STEERING
13
3
12
1
9
10
7
16
15
8
14
6
4
5
16
1
1
2

Артикул

Название

Примечание

Количество

1

5181474

RING GEAR

2шт.

2

5181476

CLUTCH PLATE

2шт.

3

5178076

CIRCLIP

4шт.

4

5178475

HUB

2шт.

5

5178065

BRAKE DISC

2шт.

6

5178068

CLUTCH PLATE

2шт.

7

5177904

SEAL,Square, 3.4mm Thk x 183.6mm ID, 80 Duro

183.6 x 190.4 x 3.4

2шт.

8

5177912

SEAL,Square, 3.4mm Thk x 143.6mm ID, 80 Duro

143.6 x 150.4 x 3.4

2шт.

9

5177902

PISTON

2шт.

10

16331930

BOLT,Hex, M14 x 1.5 x 55mm

12шт.

11

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

M14

12шт.

12

5179554

BUSHING,14.5mm ID x 22mm OD x 27.8mm L

12шт.

13

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

14

5173504

PAWL,16mm OD x 25mm L

2шт.

15

14456980

O-RING,10.77mm ID x 2.62mm

4шт.

16

5181120

HOUSING

2шт.

Выбрано товаров: 16
