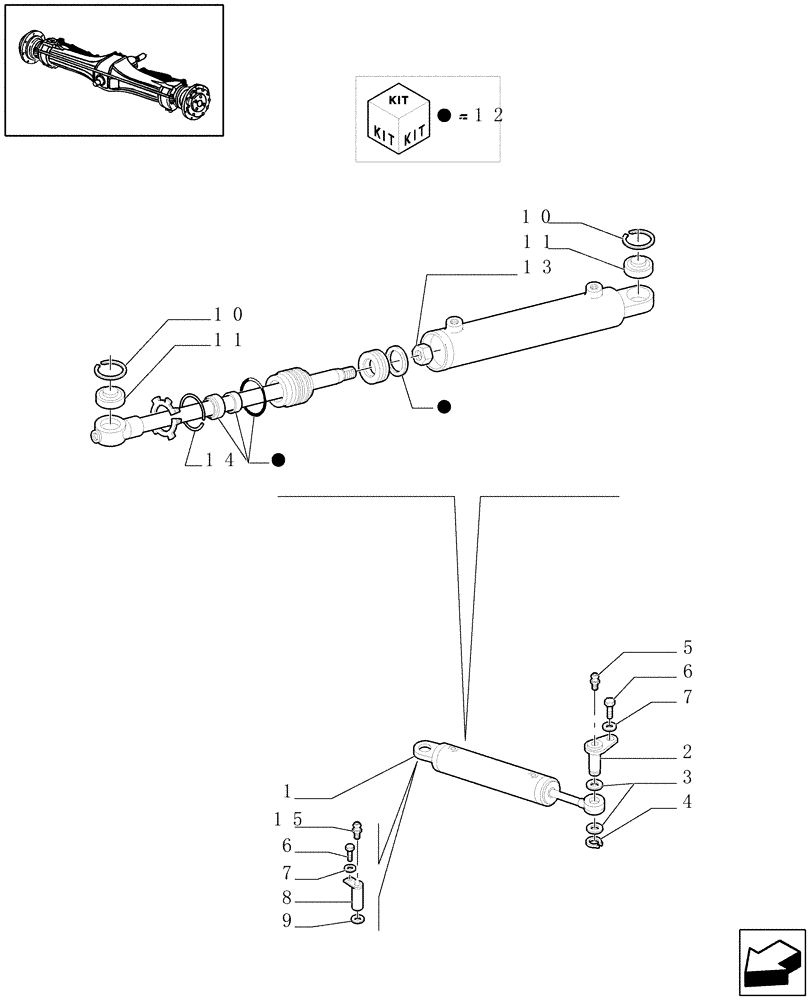

Запчасти Case IH JX1090U (1.40.11/08[01]) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - CYLINDER: PARTS (04) - FRONT AXLE & STEERING

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX1090U (1/04-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5142048

PIN,19.98mm x 107.00mm

JX1090U - JX1100U

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

20.5 x 28 x 16

2шт.

10

5190903

LOCKING RING

4шт.

11

5190901

BUSHING

4шт.

12

5190916

SEAL KIT

SEALS

2шт.

13

5190904

LOCK NUT

2шт.

14

5190568

LOCKING RING

1шт.

15

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

JX1090U - JX1100U

2шт.
