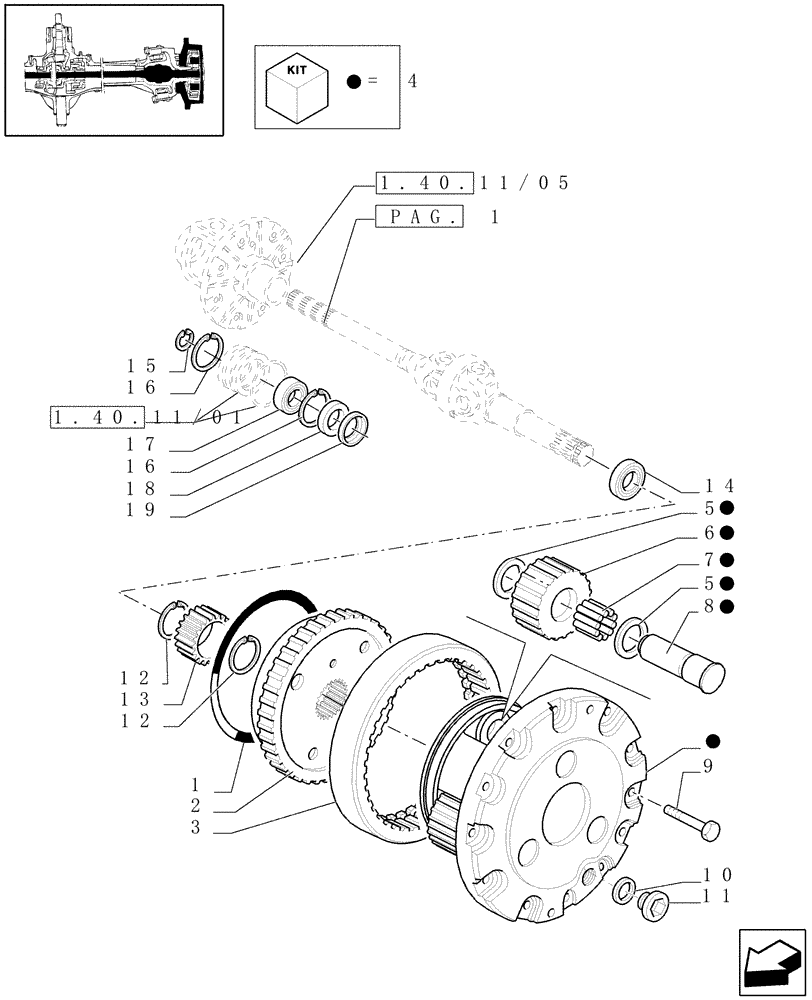

Запчасти Case IH JX1090U (1.40.11/07[02]) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - GEARS AND DIFFERENTIAL SHAFT - C4998 (04) - FRONT AXLE & STEERING

1

4997571

CIRCLIP

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

5181052

SUPPORT

ASSY

2шт.

5

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25 x 45 x 0.8

12шт.

6

5108747

PLANETARY GEAR

6шт.

7

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

25.6x35.6x29.8

6шт.

8

5181053

PIN,29.98mm OD x 66.5mm L

6шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

24шт.

10

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

11

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

15

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

16

11061076

SNAP RING,M62, Int

D=62

4шт.

17

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

18

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

D=40

2шт.

19

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.
