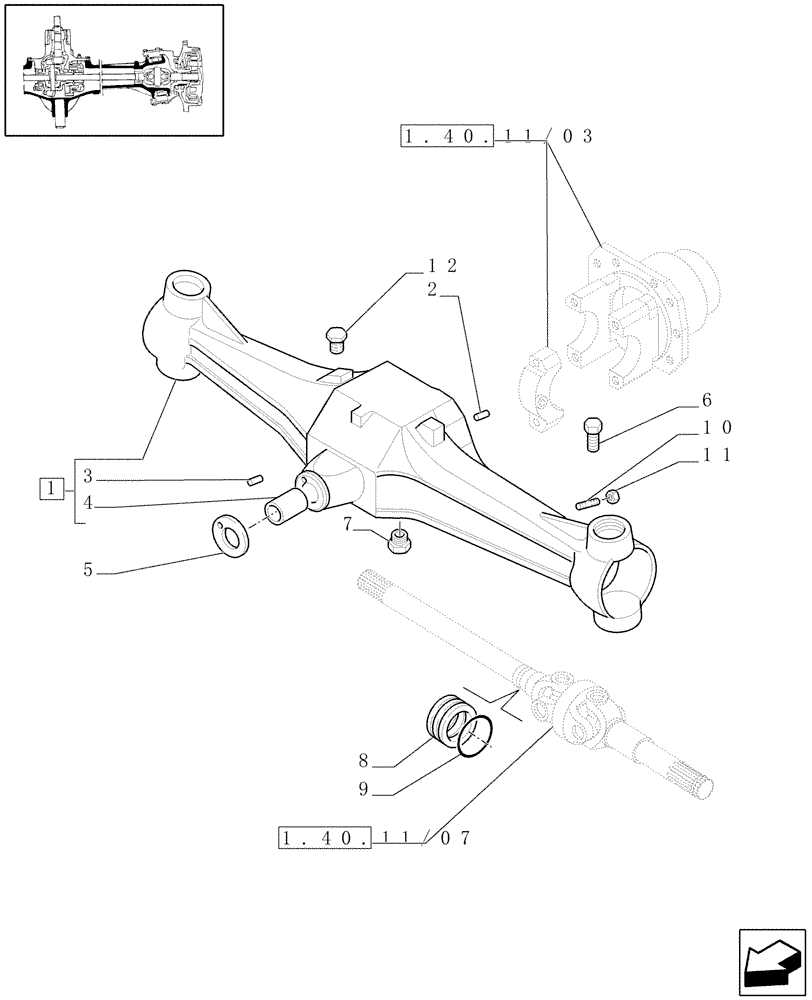

Запчасти Case IH JX1090U (1.40.11/01) - (VAR.406) FRONT AXLE, 40KM/H HYDR. DIFF. LOCK - BOX & RELEVANT PARTS (04) - FRONT AXLE & STEERING

1

5164327

AXLE HOUSING

ASSY, Incl. 2-4, Serial Range: -C5196

1шт.

1

87309861

AXLE HOUSING

ASSY, Incl. 2-4, Start Serial: D5196

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

Front

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

14324413

PLUG,M22 x 1.5

1шт.

8

4996755

BUSHING

JX1090U - JX1100U, Serial Range: -C5243

2шт.

8

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

, Start Serial: D5243

2шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62, JX1090U - JX1100U

1шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

M12 x 1.25 x 53, Serial Range: -C5243

2шт.

10

87309002

SET SCREW

, Start Serial: D5243

2шт.

11

16101524

NUT,M12 x 1.25, Cl 10

2шт.

12

10275011

PLUG,M22 x 1.5 x 13

JX1090U - JX1100U

1шт.
