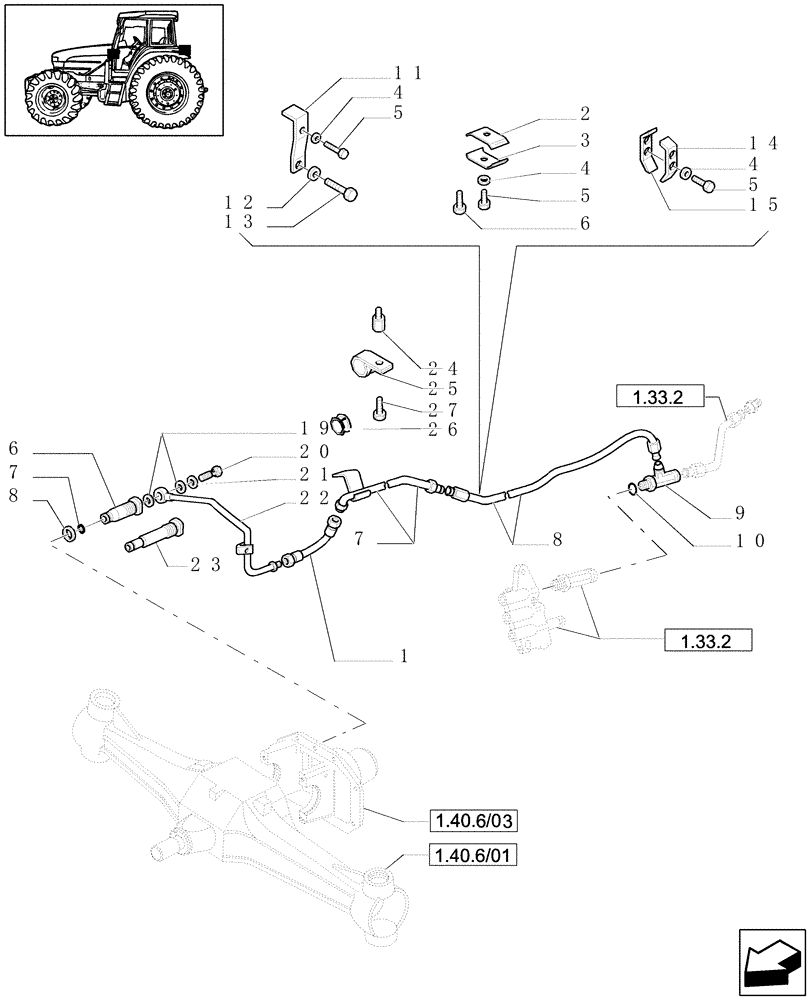

Запчасти Case IH JX1090U (1.33.2/12) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - PIPES (04) - FRONT AXLE & STEERING

1

5126537

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R2

380mm Lg.

1шт.

1

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

510mm Lg.

1шт.

2

5193550

CLAMP,6.5mm ID

1шт.

3

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

2шт.

4

10516474

LOCK WASHER

D=6

4шт.

5

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

3шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

7

47132740

HYD TUBE

, Serial Range: -C6228

1шт.

7

84152240

HYD TUBE,12 mm OD

, Start Serial: D6228

1шт.

8

47129798

HYD TUBE

1шт.

9

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5174101

BRACKET

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

14

5174104

BRACKET

1шт.

15

5174105

BRACKET

1шт.

16

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

JX1070U, JX1080U

1шт.

17

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

18

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

1шт.

19

2852356

SEALING WASHER

14 x 20 x 1.5

2шт.

20

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

21

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

22

5164327

AXLE HOUSING

JX1090U, JX1100U

1шт.

22

5174936

HYD TUBE

JX1070U, JX1080U

1шт.

23

5163430

HYD CONNECTOR

JX1090U, JX1100U

1шт.

24

5198397

SPACER

1шт.

25

4951136

CLAMP

1шт.

26

5118182

RING

1шт.

27

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
