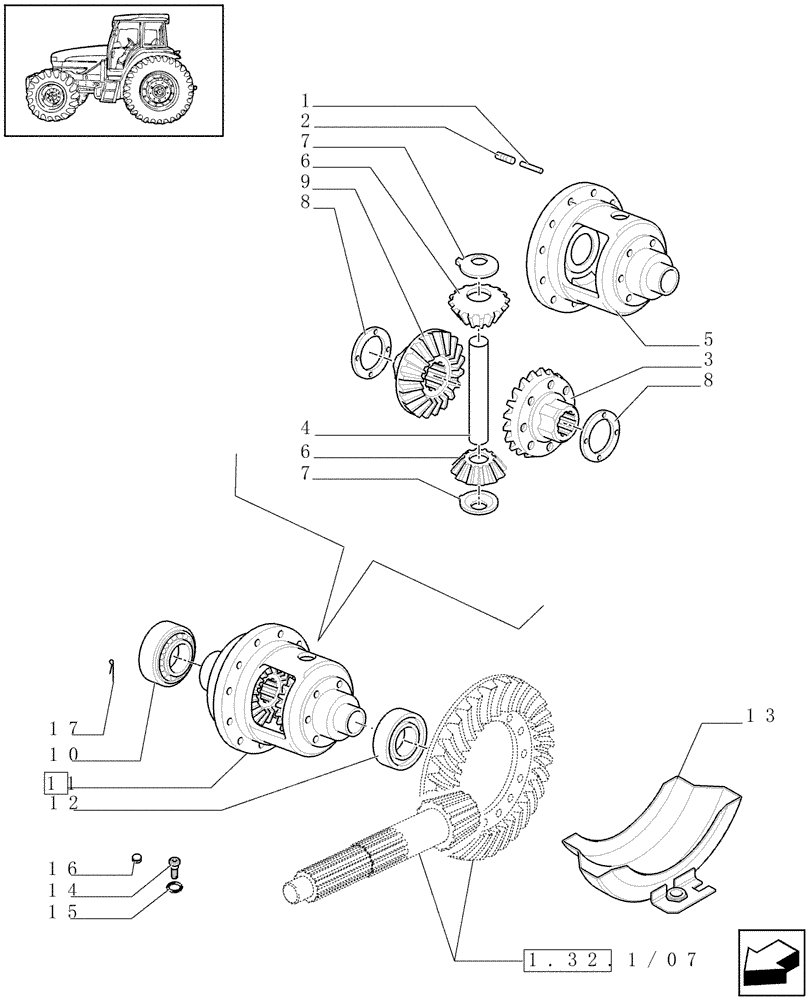

Запчасти Case IH JX1090U (1.32.4/02) - (VAR.406) FRONT AXLE,40KM/H HYDR. DIFF. LOCK.- REAR DIFFERENTIAL GEARING (03) - TRANSMISSION

1

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

2

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

3

4993576

PLANETARY GEAR

1шт.

4

47135873

PIN,29.96mm OD x 182mm L

1шт.

5

5181266

HOUSING

1шт.

6

4993578

IDLER PINION

2шт.

7

4993654

THRUST WASHER,30mm ID x 61mm OD x 1.5mm Thk

2шт.

8

4993652

THRUST WASHER,1.5mm Thk

1шт.

8

4993653

THRUST WASHER,60mm ID x 80mm OD x 1.6mm Thk

1шт.

8

5138269

THRUST WASHER,60mm ID x 80mm OD x 1.7mm Thk

1шт.

8

5144799

THRUST WASHER,60mm ID x 80mm OD x 1.4mm Thk

1шт.

8

5144800

THRUST WASHER,60mm ID x 80mm OD x 1.8mm Thk

1шт.

8

5168814

THRUST WASHER,60mm ID x 80mm OD x 1.9mm Thk

1шт.

8

5168815

THRUST WASHER,60mm ID x 80mm OD x 2mm Thk

1шт.

9

4993577

PLANETARY GEAR

1шт.

10

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

2шт.

11

5181267

DIFFERENTIAL ASSY

ASSY

1шт.

12

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

13

87566527

GUARD

, Start Serial: D5692

1шт.

14

87588834

PLUG

M8 x 1.5, Start Serial: D5692

1шт.

15

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

, Start Serial: D5692

1шт.

16

14328501

PLUG,M16, Tapered

, Start Serial: D5692

1шт.

17

10802801

COTTER PIN,M2.5 x 25

, Start Serial: D5692

1шт.
