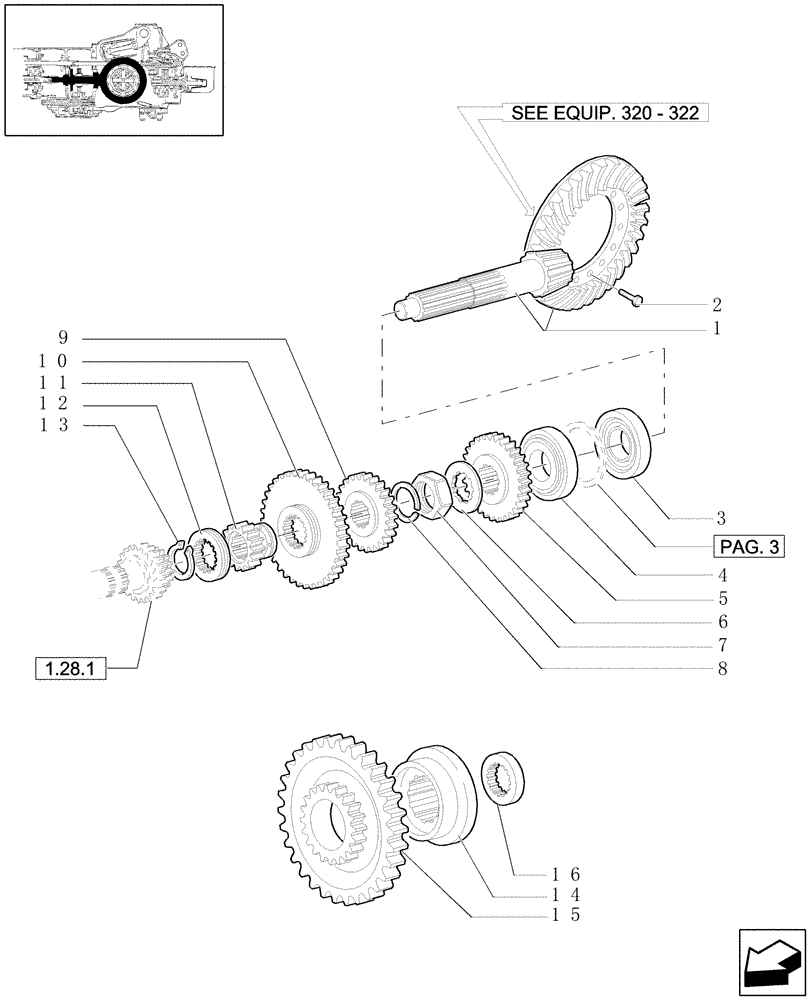

Запчасти Case IH JX1090U (1.32.1[01]) - CENTRAL REDUCTION GEARS - SLOW SPEED DRIVEN GEAR (03) - TRANSMISSION

1

5153715

BEVEL GEAR

R.9/43, JX1080U, JX1090U

1шт.

1

5153722

BEVEL GEAR

R.9/43, JX1070U

1шт.

1

47135643

GEAR SET

R.9/43, JX1100U

1шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

JX1070U

8шт.

2

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

JX1080U, JX1090U, JX1100U

12шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

45 x 100 x 38.2

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

5125005

DRIVEN GEAR

JX1070U, JX1080U

1шт.

5

87388608

DRIVEN GEAR

JX1090U, JX1100U

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

5145165

GEAR

JX1070U, JX1080U

1шт.

10

5125007

DRIVEN GEAR

JX1070U, JX1080U

1шт.

11

5125009

SPLINED COUPLING,10T Internal / 23T External

JX1070U, JX1080U, JX1090U

1шт.

11

5160749

SPLINED COUPLING,10T Internal / 23T External

JX1100U

1шт.

12

5125010

SLEEVE,23T

1шт.

13

11068976

SNAP RING,M42, Ext

1шт.

14

5131681

SPACER

JX1090U

1шт.

15

5131680

DRIVEN GEAR

JX1090U

1шт.

15

5160747

GEAR

JX1100U

1шт.

16

5160748

SPACER

JX1100U

1шт.
